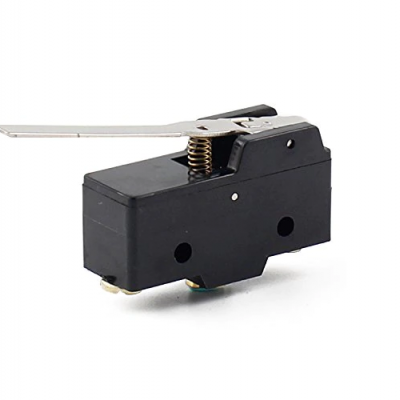

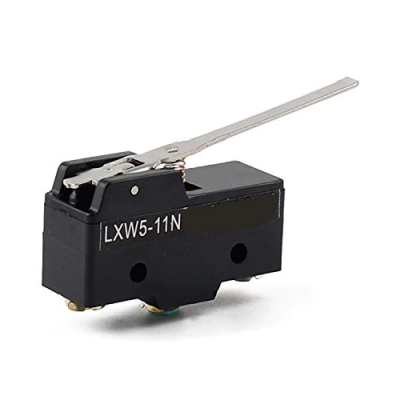

LXW5-11N1 Micro Limit Switch Long Lever Arm SPDT
  • Stock: In Stock
  • Brand: xcluma
  • Model: BE-002134
  • Weight: 23.00g
  • SKU: BE-002134
  • MPN: BE-002134
0 reviews - Write a review
Rs57.00
(GST +18%Extra)
Add to Cart
Direct Checkout Ask Question
Add to Wish List Compare this Product
free shipping Order Above 499--**
Dispatch within 24 Hours*
7 Days Replacement Only
LXW5-11N1 Micro Limit Switch Long Lever Arm SPDT

Specifications:
Product Name: Micro Switch
Model No.: LXW5-11N1
Contact Type: 1NO, 1NC, 1 Com
Mounting Type: Panel Mount
Termination Style: Screw Terminal
Actuator Type: Straight Hinge Lever

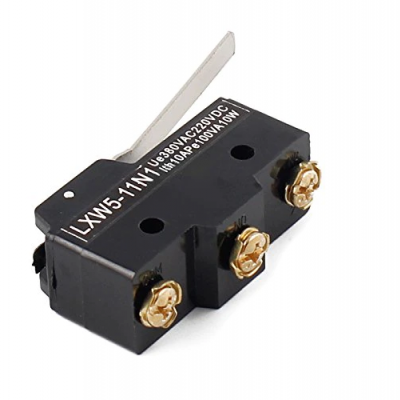

Ue: AC 380V, DC 220V
Ith: 3A, Pe 100VA, 10W

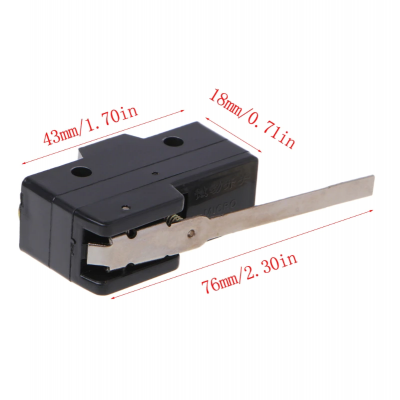

Switch Body Size: 5 x 1.8 x 3cm / 1.97" x 0.7" x 1.2"(L*W*H)
Fixing Holes Dia.: 0.4cm / 0.16"
Distance Between Centers of Fixing Holes: 2.5cm / 0.98"
Roller Lever Size: 7 x 0.8cm/ 2.7" x 0.3" (L*W)
Color: Black, Silver Tone
Package Content: 1 x Micro Switch
