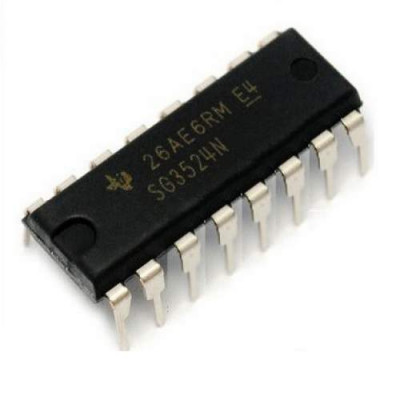

SG3524 SG3524N Regulating Pulse Width Modulator

Thanks for Your Trust and Support!!!

SG3524 SG3524N Regulating Pulse Width Modulator

Stock: In Stock
Brand: xcluma
Model: BE-000703
Weight: 10.00g
MPN: BE-000703

0 reviews - Write a review

Rs20.00

(GST +18%Extra)

Qty

Add to Cart

Direct Checkout Ask Question

Add to Wish List Compare this Product

free shipping Order Above 499--**

Dispatch within 24 Hours*

7 Days Replacement Only

Description
Reviews

DESCRIPTION:

This monolithic integrated circuit contains all the control circuitry for a regulating power supply inverter or switching regulator. Included in a 16-pin dual-in-line package is the voltage reference, error amplifier, oscillator, pulse-width modulator, pulse steering flip-flop, dual alternating output switches and current-limiting and shut-down circuitry. This device can be used for switching regulators of either polarity, transformer-coupled DC-to-DC converters, transformerless voltage doublers and polarity converters, as well as other power control applications. The SG3524 is designed for commercial applications of 0°C to +70°C.

SPECIFICATIONS:

Contains the Necessary Control Circuit for a Regulator Power Supply Inverter/Regulator
Complete PWM Power Control Circuitry
Single Ended or Push-Pull Outputs
Line and Load Regulator of 0.2%
1% Maximum Temperature Variation
