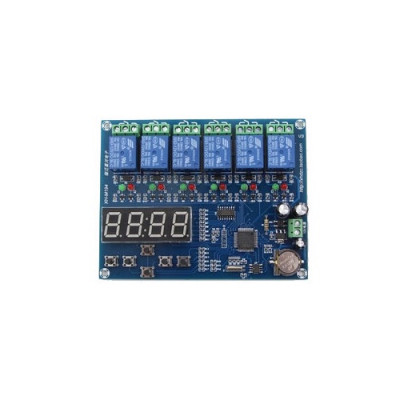

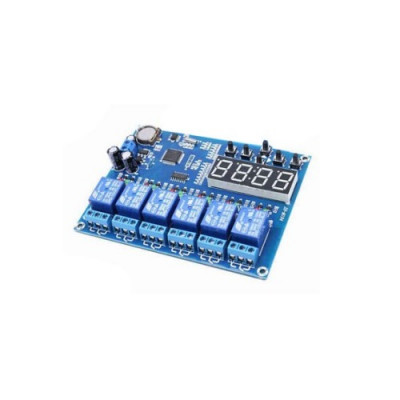

XH-M194 5WAY TIMER RELAY CONTROL MODULE

DESCRIPTION:

  • Model: XH-M194
  • The motherboard power supply: AC/DC12V
  • The output type: 250V/10A (Max) relay output
  • Appearance Size: 120 * 93 * 19 mm installation empty diagonal 113 * 83 mm
  • Screen size: 50 * 19 mm
  • Timing accuracy: 1 min


FEATURES:

  • This module can control five way independent relay and one way all Relay Output normally open or Normally closed
  • This module is applied to motor control, water pump control, the control of the boiler, etc.


METHOD OF USE:

  • Sets the system time: enter P006, set the time. If you have already set up can ignore time steps
  • Open the first channel: press set button to enter P01, change to NO
  • Set H1 and H2: after set, press the return key to exit
  • 6 relay for total output, that is, from 1 to 5 any relays closed, then the sixth followed closed!



KEYS:

  1. Press once to enter menu P001 - P007
  2. Move to the left, setup time effectively
  3. Moves to the right, set a time effective
  4. Click a return to the higher level menu

Up-Key: increase in the currently displayed value, setting time, menu available at the time
Down-Keys: reduce the currently displayed value, setting time, menu available at the time
