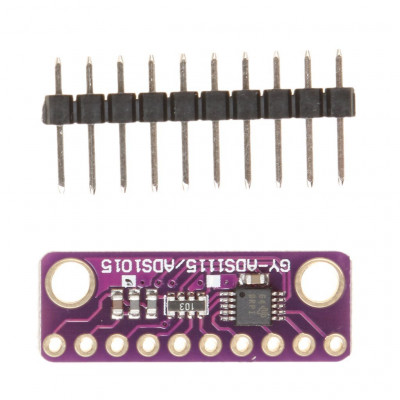

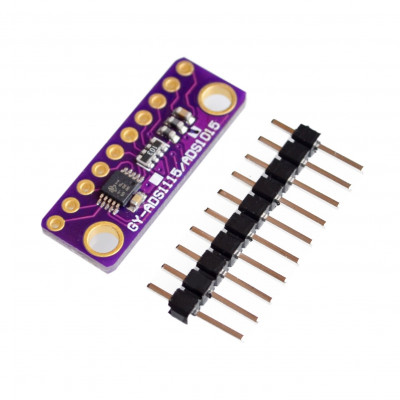

ADS1015 Ultra Small 12 Bit Precision Analog-to-Digital Converter ADC Development Board Module

ADS1015 Ultra Small 12 Bit Precision Analog-to-Digital Converter ADC Development Board Module
  • Stock: In Stock
  • Brand: xcluma
  • Model: BE-001746
  • Weight: 2.00g
  • SKU: BE-001746
  • MPN: BE-001746
Rs348.00
(GST +18%Extra)
  • For microcontrollers without an analog-to-digital converter or when you want a higher-precision adc, the ads1015 provides 12-bit precision at 3300 samples/second over i2c
  • The chip can be configured as 4 single-ended input channels, or two differential channels as a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range
  • The chip's fairly small so it comes on a breakout board with ferrites to keep the avdd and agnd quiet
  • Interfacing is done via i2c
  • The address can be changed to one of four options, so you can have up to 4 ads1015's connected on a single 2-wire i2c bus for 16 single ended inputs
