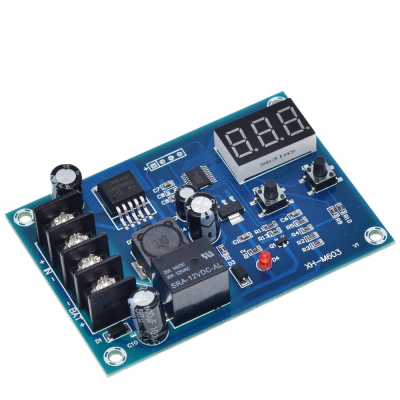

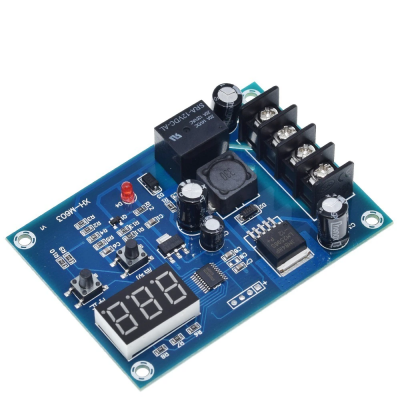

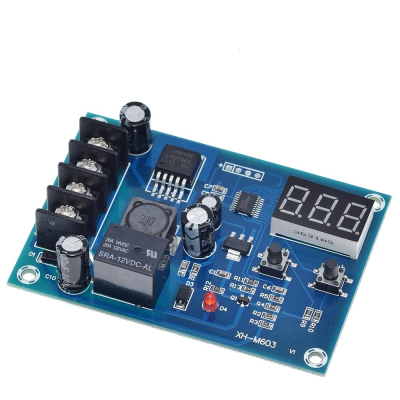

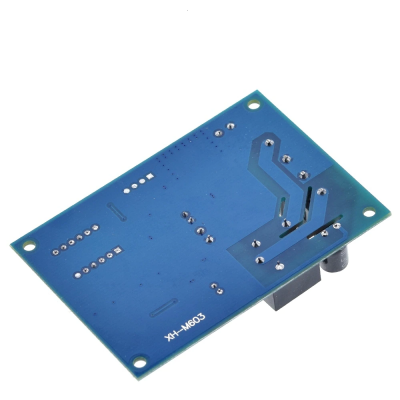

XH-M603 Charging Control Module 12-24V Storage Lithium Battery Charger Control Switch Protection Board With LED Display

Product Introduction:
1.Model:XH-M603
2.Input Voltage:DC 10-30V
3.Display Precision:0.1V
4.Control Precision:0.1V
5.Output Type:direct output
6.Voltage Tolerance:+/-0.1V
7.Application Fields:12-24V storage battery

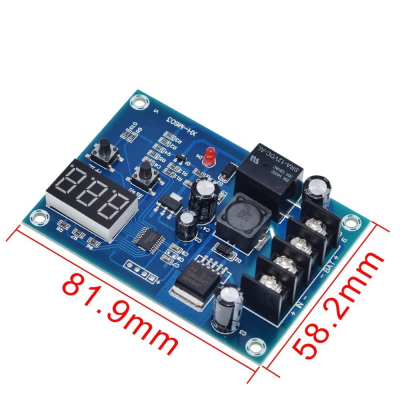

8.Size;82*58*18mm

Using Method:

 1.Set Starting Voltage:in normal display voltage state,press the button will display start charging voltage;long press for 3s the digital tube will flash;you can start or stop button to set starting up charge voltage value

2.Set Stop Voltage:in normal display voltage state,press the button will display stoping charge voltage;long press the button for 3s the digital tube will flash;you can start or stop button to set stoping charge voltage value

3.Factory Reset:in power on state press the start/stop button at the same time,digital tube will display 888;that represents factory reset settings


Package Included:
 1× DC12V-24V Lithium Battery Charge Control Protection Board /w LED Display XH-M603
