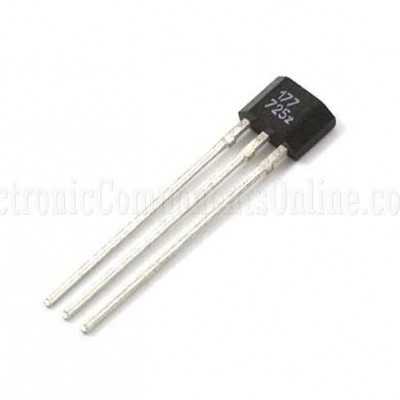

A3144 Hall Effect Sensor

The A3144E(US1881) is an integrated Hall effect latched sensor. That’s nice but what does it do? Holding a magnet near the sensor will cause the output pin to toggle. This makes for a robust presence sensor. A reed sensor also works nicely, but can be limited by the glass encapsulation and size. A hall effect sensor is much smaller, but can handle less current than a reed switch.

The device includes an on-chip Hall voltage generator for magnetic sensing, a comparator that amplifies the Hall voltage, and a Schmitt trigger to provide switching hysteresis for noise rejection, and open-collector output. An internal bandgap regulator is used to provide temperature compensated supply voltage for internal circuits and allows a wide operating supply range.

If a magnetic flux density larger than threshold Bop, DO is turned on (low). The output state is held until a magnetic flux density reversal falls below Brp causing DO to be turned off (high).


FEATURES:

  •     3.5V to 24V DC operation voltage
  •     Low current consumption
  •     Temperature compensation
  •     Wide operating voltage range
  •     Open-Collector pre-driver
  •     50mA maximum sinking output current
  •     Reverse polarity protection
  •     Lead Free Package: TO-92
