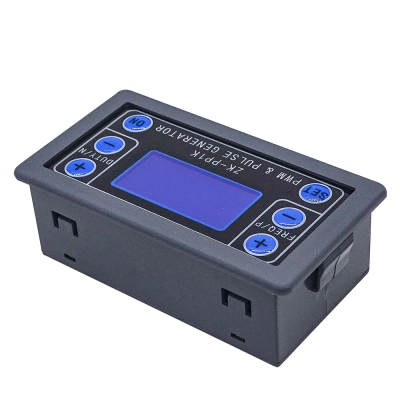

ZK-PP1K PWM Duty Cycle Adjustable Module Square Rectangular Wave Signal Generator

Description:

·        PWM signal generator, square wave rectangular wave signal generator

·        Used to generate a square wave rectangular wave signal, which is supplied to a DC motor or a stepper motor driver. Stepper motor, servo motor, electric gripper, robot arm.

Features:

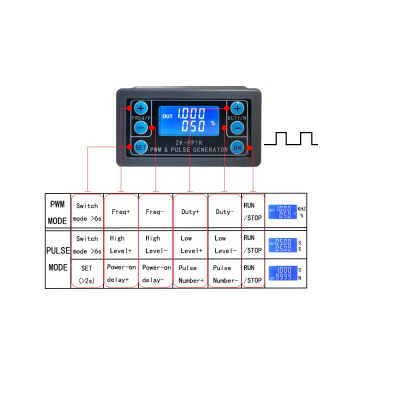

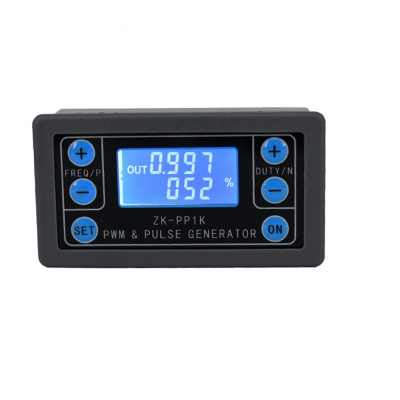

·        Two modes can be selected: PWM mode - frequency (continuous), duty cycle. Note that the number of pulses cannot be set in this mode, and the pulse is always emitted

·        PULSE mode - positive pulse width time, negative pulse width time, delayed start time, and adjustable number of pulses

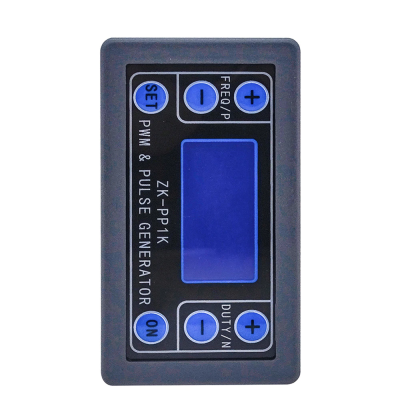

·        With start-stop button, external switch can also be used to control output signal ON/OFF

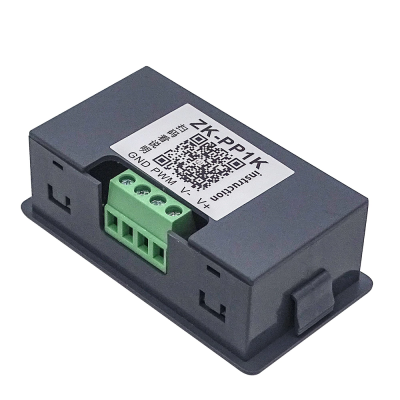

·        Wide voltage input 3.3-30V, with anti-reverse protection, 5.08mm terminal wiring

·        Combine the driver to realize dimming, speed regulation, control solenoid valve, etc. However, it is not possible to directly drive loads such as electric lights, motors, and solenoid valves.

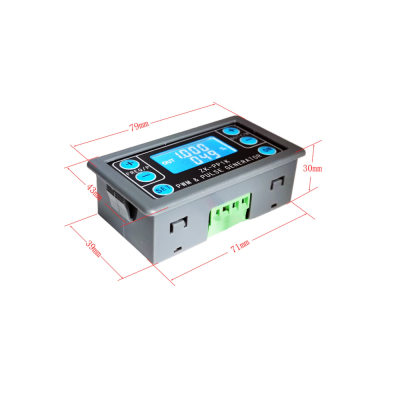

 Specifications:

·        Material: Plastic Metal

·        Colour: Black
Working voltage: 3.3~30V, with anti-reverse protection

·        Frequency range: 1Hz~150KHz, accuracy about 1%

·        Duty cycle range: 0-100%, 1% stepping

·        Number of pulses: 1-9999, or infinite (display '----' stands for infinity)

·        Delay output time: 0.000s-9999s, the minimum can be set 1ms
Positive and negative pulse width length: 0.000s-9999s, the minimum can be set 1ms

·        Signal loading capacity: less than 30mA

·        Output signal amplitude: amplitude is equal to the supply voltage
