DESCRIPTION:

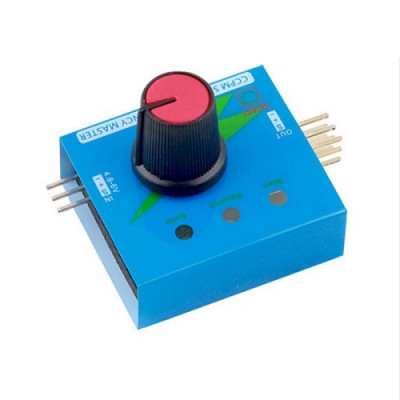

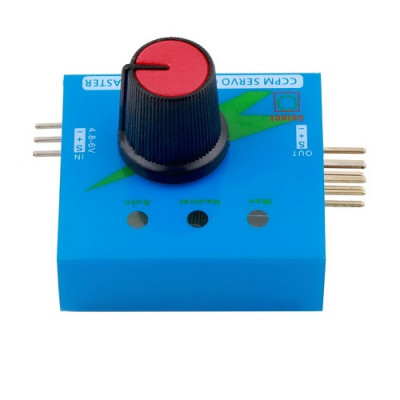

• CCPM Servo Consistency Master / Servo tester
• The device also can be used as a signal generator for electric speed controller (ESC),
• Then you can test your motor system without using a transmitter and receiver.
• There are 3 modes to check servos or ESC:
• Manual mode: turn the knob with different speed, check the reaction time.
• Neutral mode: make the servo go back to the neutral point.
• Automatic \"window wiper\" mode: make the servo swing like a window wipers in the biggest angle.
• It can connect 1-3 servos simultaneously and test such as 1-3 servos consistency and so on.
• You can also connect 1-3 ESC to test and compare their reaction time respectively.
• It can connect 3 servos of the CCPM helicopters and select servos.
• It can also connect the servo of airplanes install the steering-box
• and adjust planes by using such as the neutral mode

​SPECIFICATIONS:

• Voltage consumption: DC4.8-6V
• Size: 48 x 42 x 17mm
• Original box: NO
• Color: Blue
• Item size: 48*42*17 mm
