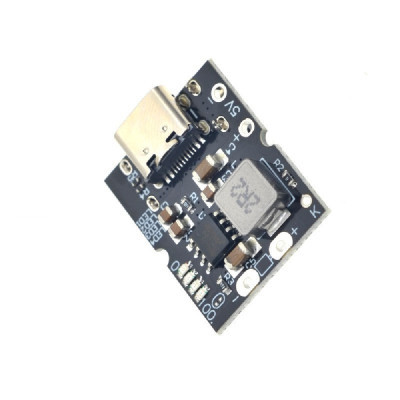

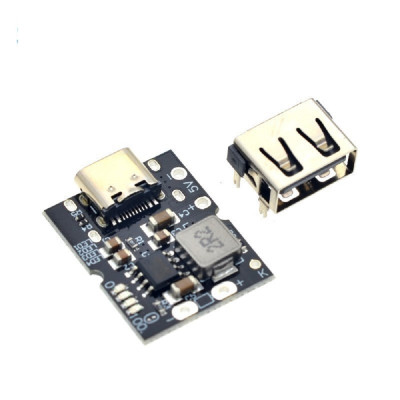

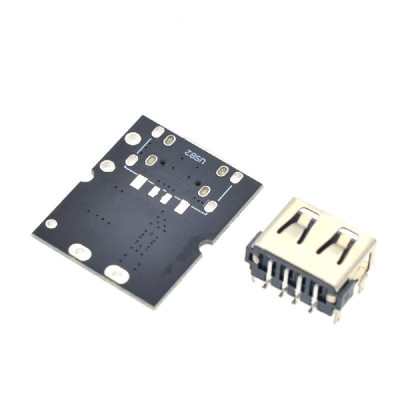

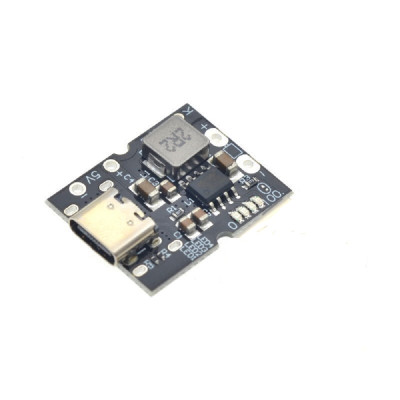

High-precision 5V2A charge discharge Type-C input

High-precision 5V2A charge discharge Type-C input

·       High precision 5V2A integrated charging and discharging.

·       Module Type-C input compatible with 4.2V/4.35V lithium battery.

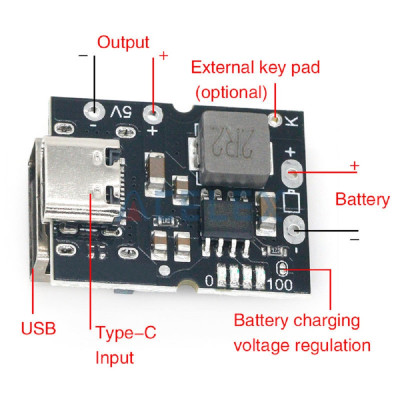

·       Support external buttons, connect the button to the K point and output negative pole.

·       Short press to turn on the battery display and turn on 5V output.

·       Two consecutive short presses will turn off the battery display and turn off 5V output.

·       Supports charging and discharging simultaneously

·       When the battery voltage is below 2.8V, the battery will be pre charged with a current of 180mA

·       When the load current is continuously less than 50mA, the output will be turned off
