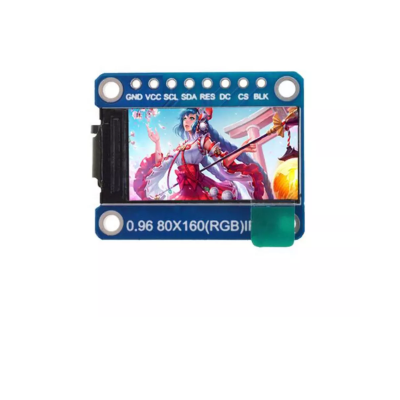

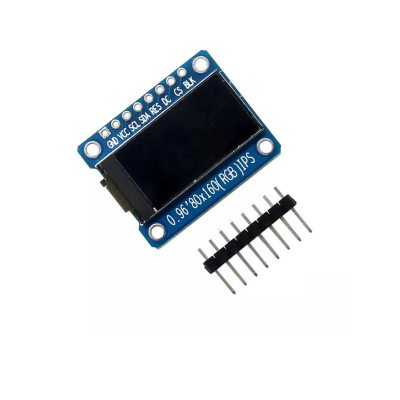

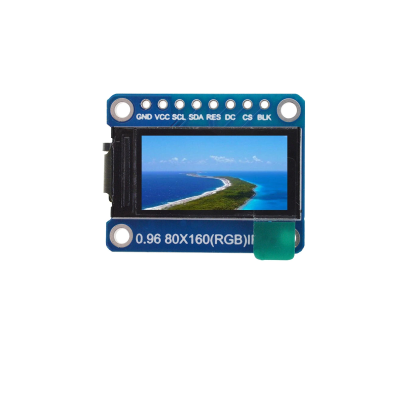

0.96 inch HD TFT OLED Color High Resolution Display 80X160 Screen St7735

0.96 inch HD TFT OLED Color High Resolution Display 80X160 Screen St7735
  • Stock: In Stock
  • Brand: xcluma
  • Model: BE-002819
  • Weight: 3.00g
  • SKU: BE-002819
  • MPN: BE-002819
Rs380.00
(GST +18%Extra)

Features:

• Colour screen resolution 80*160, display direction is adjustable and supports horizontal and vertical screen.
• High resolution 0.96-inch IPS colour screen and more vivid colour than ordinary TFT LCD.
• Interface definition: GND, VCC (3.3-5V), SCL (SPI clock line), SDA (SPI CABLE), RES, DC, black.
• Small and exquisite appearance This module size is 24*30mm, which is small and easy to use.
• High-definition IPS display, 0.96-inch colour screen which shows clear content.

Specifications:

• Size: 0.96 inch
• Control chip: ST7735
• Display size: 10.8*21.696 mm.
• Product size: 24*30mm
• Interface type: SPI interface
• Number of needles: 7 pins
• Display colour: 65K colours
• Working temperature: -20 ~ 70 °C
• Working voltage: 3.3V
