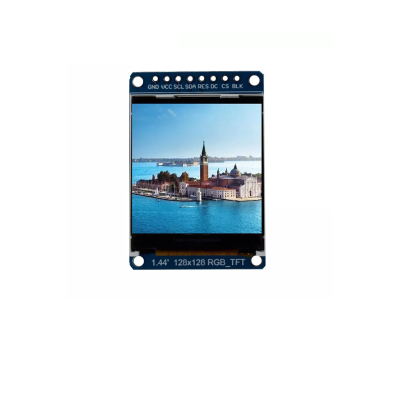

1.44 inch HD TFT OLED Color High Resolution Display 128X128 IPS Screen St7735

·        SIZE 1.44 inch

·         Display Mode a-TFT

·        Display Format 128RGB*128 dots matrix

·         Input Data SPI interface

·        Drive IC ST7735S

·        Dimensional outline 300(W)*46.50(H)*3.45+/-0.1(T)mm

·        Resolution 128RGB*128 Dots

·        LCD Active area 25.50 (W)*26.50 (H)

·        Pixel size 0.20(W)*0.20(H)mm

·        Viewing Direction 12 o’clock

·        Operating Temperature -20～70°C

Pin Descriptions：

• PIN No
• Symbol
• GND Ground
• VCC Power 3.3V
• SCL Serial clock pin.
• SDA Serial data input
• RES LCM Reset pin
• This pin is reset signal input. When the pin is low, initialization of the chip is
• executed. Keep this pin pull high during normal operation.
• DC Data/Command Control
• CS Chip Select
• BLK Backlight control pin
• Connected to the microcontroller
