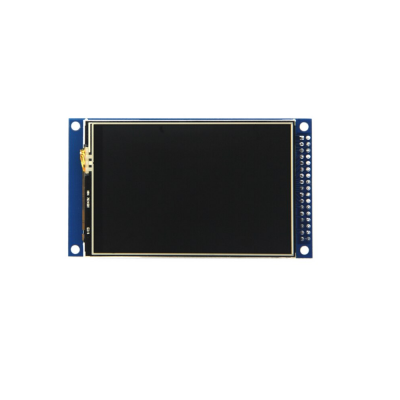

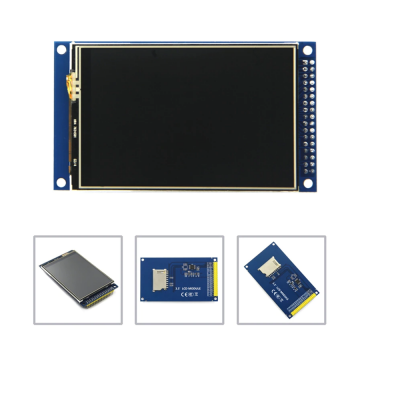

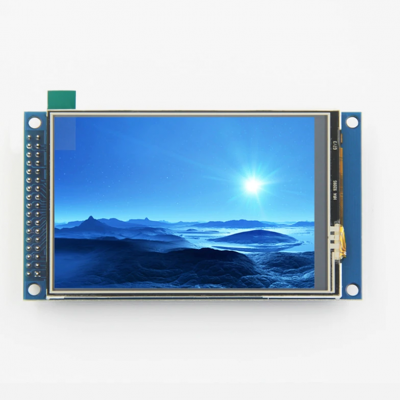

3.5 Inch 320X480 TFT LCD Screen Display Module RGB Color Driver IC ILI9486

Product Description:

·         5-inch colour display, supports 16BIT RGB 65K colour display, rich colour

·         display 320x480 resolution for clear

·         display 16-bit parallel bus transmission for fast

·         transfer speed Support ALIENTEK STM32 Mini, Elite, Warship, Explorer, and Apollo development boards for direct use when connected

·         Support for contact

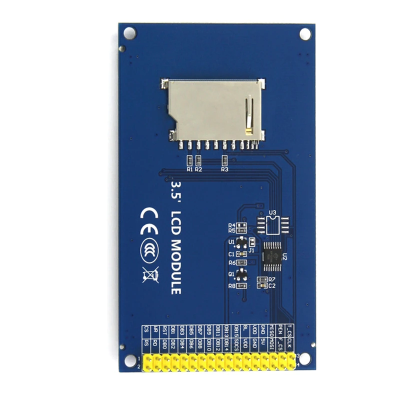

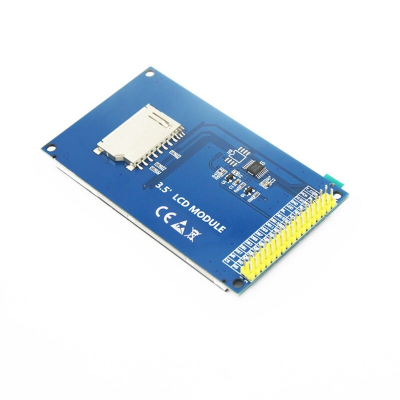

·         function Support expansion of SD

·         card function Providing rich sample programs for the STM32 and C51

·         platforms military-grade Process Standards, long-term

·         stable work Provide technical support of the underlying

·         driver Product parameters: Screen colour: 16BIT RGB 65K colour

·         Screen Size: 3.5 (inches)Screen type: TFT

·         Driver IC: ILI9486

·         Resolution: 480*320 (pixels)

Module interface:
16Bit
parallel interface Active area: 48.96x73.44 (mm)Contact screen type: resistive
contact screen Contact IC: XPT2046 PCB
Module size: 56.34x98.25(mm)Operating temperature: -20°C~60°C Storage temperature: -30°C~70°C
Operating voltage: 3.3V/5V
Power consumption: TBD
Rough weight (package contents): with contacts: 58(g)
