5S 15A Li-ion Lithium Battery 18650 Charger PCB BMS 18.5V Cell Protection Board

5S 15A Li-ion Lithium Battery 18650 Charger PCB BMS 18.5V Cell Protection Board
  • Stock: In Stock
  • Brand: xcluma
  • Model: BE-002348
  • Weight: 10.00g
  • SKU: BE-002348
  • MPN: BE-002348
Rs183.00
(GST +18%Extra)

5S 15A Li-ion Lithium Battery 18650 Charger PCB BMS 18.5V Cell Protection Board

Description:
Brand new

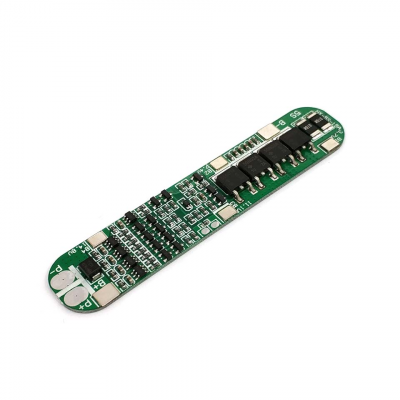

This board is 5 string 3.7V/4.2V lithium battery protection board
High current protection board, continuous 15A current
Protection board with overcharge protection, over-discharge protection, over-current protection, short circuit protection.

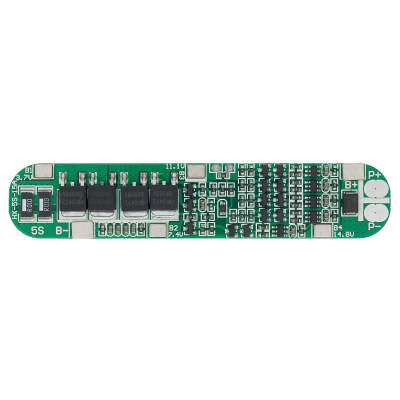

P+ P- is the abbreviation of PACK+ PACK-, that is, the output of positive and negative poles
B+ B-is the abbreviation of battery, which is the positive and negative pole of the battery.

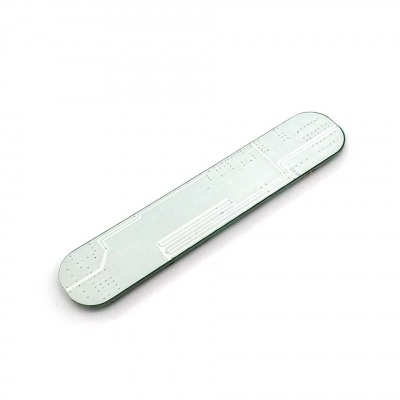

PCB board size: (approx.)8.8x1.6cm/3.46x0.63"
Detailed Parameters:
Discharge:
Continuous discharge current: 15A(max)
Instantaneous discharge current: 25A
Charge:
Charge voltage: 21V
Charging current: 15A(max)
Overcharge Protect:
Over-charge detect: 4.28±0.05V
Protect delay: 0.5s
Over-charge release: 4.28±0.05V
Over-discharge Protect:
Over-discharge detect: 2.55±0.08V
Over-discharge detect delay: 0.1s
Release voltage: 2.9±0.1V
Short-circuit Protect:
Protect condition: Cut load
Detect delay: 250uS
Release condition: Cut load
Over-current Protect:
Detect voltage: 150mV
Detect delay: 9MS
Current detect: 30±3A
Release condition: Cut load
Inner Resistance: ≤20mΩ
Self-consumption:
Working current: ≤30uA
Sleep current: (when over-charge)≤10uA
Working Temperature Range: -30-+80℃
Quantity: 1 Pc

Package included:
1 Pcs Li-ion Lithium Battery Protection Board
