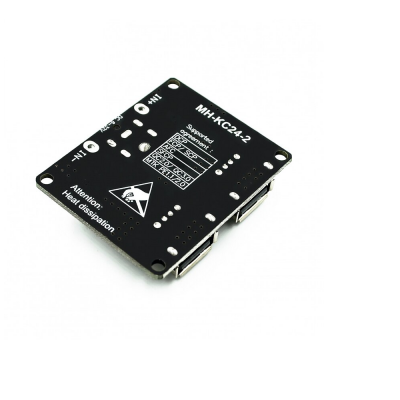

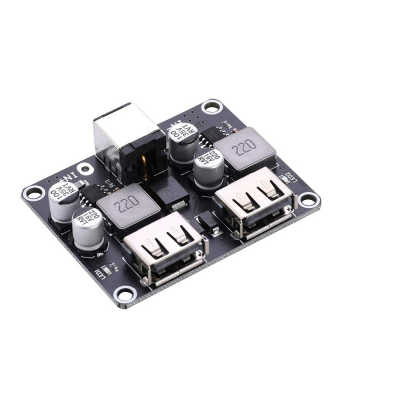

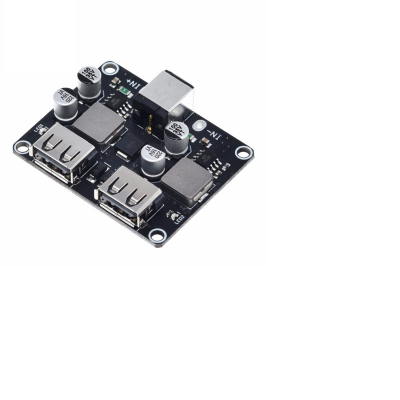

12V 24V to QC3.0 Fast Charge Dual USB Charging Board Step-Down Module

free shipping Order Above 499--**

Dispatch within 24 Hours*

7 Days Replacement Only

Description
Reviews

Product description

Product Features and description

Input voltage range: 6V-32V
Output voltage: default 5V, automatically adjust between 3-12V after triggering fast charge
Output power: up to 24W (5V/3.4A, 9V/2.5A, 12V/2A, etc.)
Output voltage cable compensation function
Conversion efficiency: 90%-97% · Support multiple fast charging protocols
Input overvoltage and under voltage protection
Input overcurrent protection
Output overcurrent, short circuit protection
Machine over temperature protection Support fast charge agreement
Support DCP protocol, BC1.2, Apple, Samsung protocol
Support Huawei Fast Charge Protocol FCP/SCP
Support Huawei Fast Charge Protocol AFC
Support Spread rum Fast Charge Protocol SFCP
Support Qualcomm QC2.0 and 3.0
Support MTK PE1.1/PE2.0
