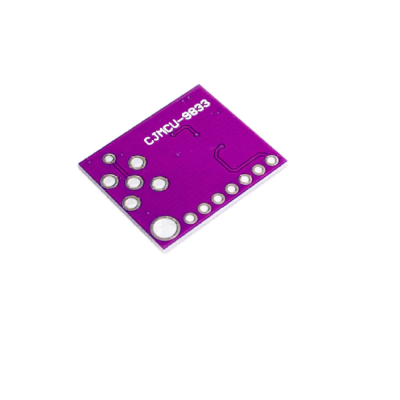

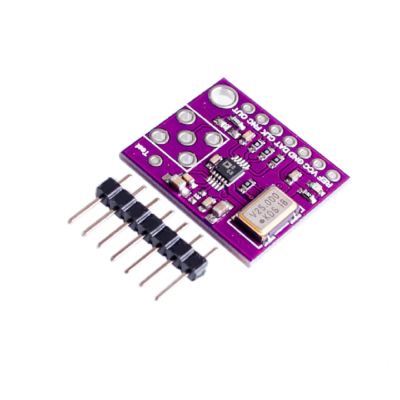

CJMCU-9833 AD9833 Module Signal Generator Module STM32 STM8 STC Microprocessors Sine Square Wave DDS Monitor

CJMCU-9833 AD9833 Module Signal Generator Module STM32 STM8 STC Microprocessors Sine Square Wave DDS Monitor
  • Stock: In Stock
  • Brand: xcluma
  • Model: BE-002500
  • Weight: 3.00g
  • SKU: BE-002500
  • MPN: BE-002500
Rs426.00
(GST +18%Extra)
Description
• CJMCU-9833 AD9833 is a programmable waveform generator capable of generating a frequency 0-12.5MHZ sine, triangle, square wave signal.
• Easy to adjust, clocked clock is 25MHz, precision 0.1Hz, clock frequency is 1MHz, the precision is up to 0.004Hz.
• Frequency excitation / waveform generation. Liquid, gas flow measurement.
• Sensing applications - approximation, sports, defect detection
• Linear loss, linear decay, Test equipment, medical equipment, Scan clock generator

Specifications
• Working voltage: 2.3V-5.5V
• Working temperature range: -40 ~ + 105 °
• Onboard 25MHZ (accuracy of 50ppm) active crystal, stepping accuracy 0.1HZ.
• On-board high-speed amplifiers 300M and also has a low-pass filtering.
• Two-channel output signal, an original signal output, an amplified output signal 5 times, 50Ohm output impedance.
• Support universal plate (tunnel plate), a multiple-board pins are 2.54mm, can be easily welded universal board.
• Distribution STM32, STM8, STC and other common microcontroller debugged program and relevant information.
