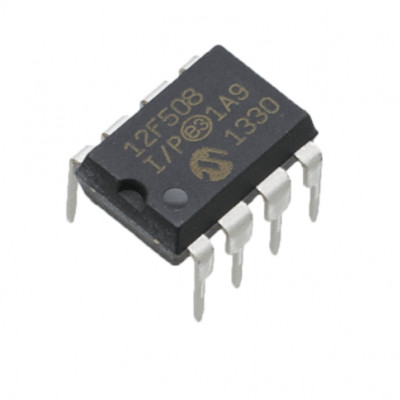

PIC12F508 12F508 8Pin DIP PIC Microcontroller

PIC12F508 12F508 8Pin DIP PIC Microcontroller
  • Stock: Out Of Stock
  • Brand: xcluma
  • Model: BE-000520
  • MPN: BE-000520
Rs50.00
(GST +18%Extra)

The PIC12F508/509/16F505 devices from Microchip Technology are low-cost, high-performance, 8-bit, fullystatic, Flash-based CMOS microcontrollers. They employ a RISC architecture with only 33 single-word/single-cycle instructions. All instructions are single cycle (200 µs) except for program branches, which take two cycles. The PIC12F508/509/16F505 devices deliver performance an order of magnitude higher than their competitors in the same price category. The 12-bit wide instructions are highly symmetrical, resulting in a typical 2:1 code compression over other 8-bit microcontrollers in its class. The easy-to-use and easy to remember instruction set reduces development time significantly.

Features:

  • Precision 4 MHz internal oscillator
  • Baseline Core with 33 Instructions, 2 Stack Levels
  • All single-cycle Instructions except for program branches which are two cycles
  • 12-bit wide instructions
  • 8-bit wide data path
  • 25 mA source/sink current I/O
  • Low power (100nA) sleep current
  • One 8-bit timer (TMR0)
  • Watchdog timer (WDT)
  • In Circuit Serial Programming™ (ICSP™) capability
  • In-Circuit debugging support
  • Programmable code protection


Specifications:

  • Program Memory Type: Flash
  • Program Memory (KB): 0.75
  • CPU Speed (MIPS): 1
  • RAM Bytes: 25
  • Timers: 1 x 8-bit
  • Temperature Range (C): -40 to 125
  • Operating Voltage Range (V): 2 to 5.5
  • Pin Count: 8
