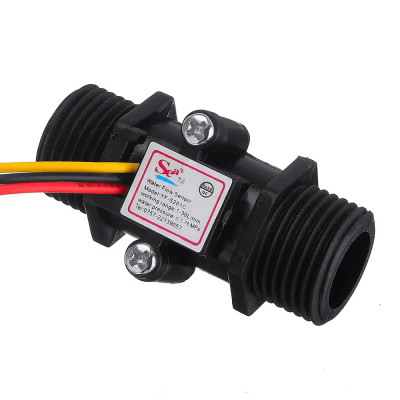

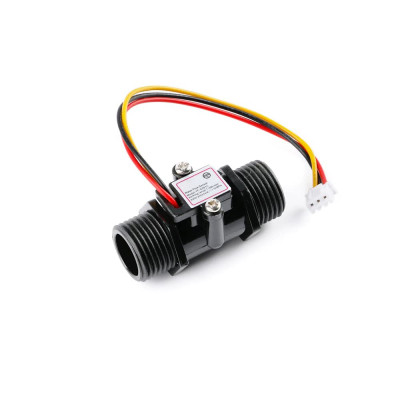

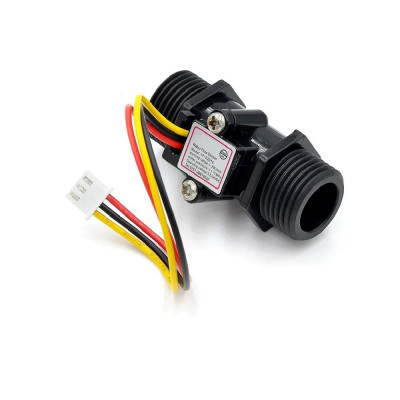

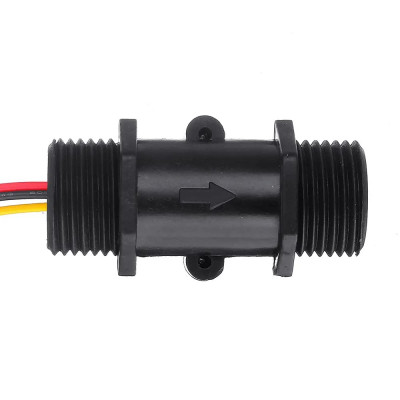

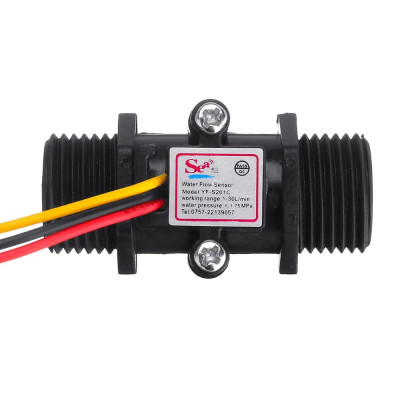

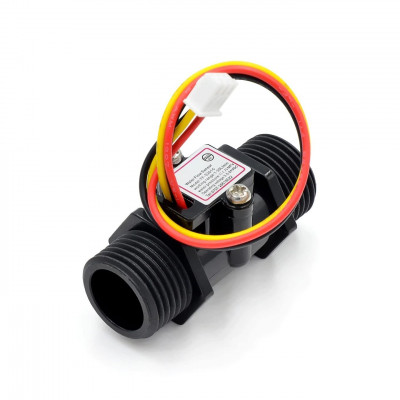

YF-S201C Flow Turbine Flowmeter Water Flow Sensor Hall Flow Sensor (Black)

YF-S201C Flow Turbine Flowmeter Water Flow Sensor Hall Flow Sensor (Black)
  • Stock: In Stock
  • Brand: xcluma
  • Model: BE-002904
  • Weight: 50.00g
  • SKU: BE-002904
  • MPN: BE-002904
Rs357.00
(GST +18%Extra)

Description

• The water flow sensor is mainly composed of a plastic valve, a water flow rotor assembly and a hall sensor.
• It is equipped with a water inlet at the end of the water heater to detect the water flow rate.
• When water passes through the water flow rotor assembly, the magnetic rotor rotates and its speed changes with the flow rate.
• The hall sensor outputs the corresponding pulse signal and feeds back to the controller.
• Judge the water size and adjust it. Product appearance and convenience, small size, easy installation, and the impeller is embedded with stainless steel beads, which is wearable.
• Circuit and water isolation design, Hall elements are imported, and the valve is made of transparent material to facilitate observation of water and rotor conditions.
• All raw materials are in line with ROHS testing standards.
• Scope of application: suitable for water heaters, credit cards, automatic water vending machines, and other flow measuring devices.

Technical Parameters


• Model: YF-S201C
• Colour: Black
• Minimum voltage: DC4.5 5V-24V
• Max current:15 mA (DC 5V)
• Voltage range: DC 5 ~ 18 V
• Loading capacity: ≤ 10 mA (DC 5V)
• Temperature range: ≤ 80 ° C
• Working humidity range:35%~90%RH (no condensation state)
• Keeps the pressure: Following pressure 1.75Mpa
• Temperature: -25 ~ + 80 ° C
• Retain moisture:25% ~ 95% RH
• Scope: Suitable for water heaters, credit card machines, vending machines, and other cash flow measuring equipment!
