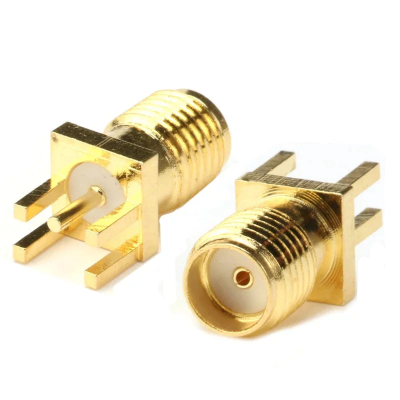

SMA Female Jack Solder PCB SMA-KE Mount Straight RF Connector

SMA Female Jack Solder PCB SMA-KE Mount Straight RF Connector
  • Stock: In Stock
  • Brand: xcluma
  • Model: BE-002342
  • Weight: 10.00g
  • SKU: BE-002342
  • MPN: BE-002342
Rs24.00
(GST +18%Extra)

SMA Female Jack Solder PCB SMA-KE Mount Straight RF Connector

Features:
1.SMA female for 1.6mm thick solder edge PCB mount straight RF connector
2.Gold plated PCB SMA Female Coaxial Connector

Specifications:
Temp.range: -65~ +165 (PE Cable -~ +85)
Vibration: MIL-STD-202,Method 213
Impedance: 50Ω
Working Voltage: 335V max
Withstand Voltage: 1000V rms
Contact resistance:Center Contact≤3mΩ
Outer Contact≤2mΩ
Insulation resistance:≥5000 mΩ
Insertion loss: ≥0.15 dB/6GHz
VSWR Straight: ≤1.10+0.002f
≤1.05+0.001f
Right angle:≤1.20+0.00
≤1.10+0.001f
Durability(mating): ≥ 500 (cycles)
