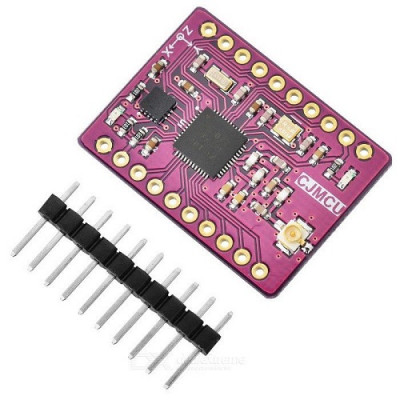

nRF51822 + LIS3DH Bluetooth Module Bluetooth + Accelerometer Wearable Devices Module

nRF51822 + LIS3DH Bluetooth Module Bluetooth + Accelerometer Wearable Devices Module
  • Stock: In Stock
  • Brand: xcluma
  • Model: BE-001449
  • Weight: 4.00g
  • MPN: BE-001449
Rs687.00
(GST +18%Extra)

DESCRIPTION:

nRF51822 supports Bluetooth low energy protocol stacks as well as 2.4GHz protocol stacks, including Gazell, both available free of charge. nRF51822 requires a single power supply and gives the user the option of using on chip linear regulators giving a supply range of 1.8-3.6V, a direct 1.8V mode and a on chip DCDC buck converter giving a supply range of 2.1-3.6V. The use of the DC-DC converter can be dynamically controlled during run time and enables nRF51822 to operate at radio peak currents below 10 mA @ 3V supply (TX @ 0 dBm & RX).

FEATURES:

  • 2.4 GHz multiprotocol RF transceiver
  • ARM® Cortex™-M0 32 bit processor
  • 128 bit AES HW encryption
  • 256kB flash & 16kB RAM
  • Programmable Peripheral Interconnect (PPI)
  • Digital interfaces: SPI, I2C, UART
  • 10 bit ADC
  • Programmable output power: -20 to +4 dBm
  • Independent application development and protocol stack
  • Fully compatible with NRF24L series
  • Pinout compatible with NRF51xxx series
  • Global separate power management
  • Operating voltage: 1.8 V ~ 3.6 V

APPLICATIONS:

  • Wearable devices
  • Bluetooth intelligent application
  • Mobile phone accessories
  • RFID labels
  • Smart home appliances
  • Industry control
  • Data acquisition system

LIS3DH Features:

  • Wide supply voltage, 1.71V to 3.6V
  • Independent IOs supply (1.8 V) and supply voltage compatible
  • Ultra low-power mode consumption down to 2 μA
  • ±2g/±4g/±8g/±16g dynamically selectable fullscale
  • I2C/SPI digital output interface
  • 16 bit data output
  • 2 independent programmable interrupt generators for free-fall and motion detection
  • 6D/4D orientation detection
  • Free-fall detection
  • Motion detection
  • Embedded temperature sensor
  • Embedded self-test
  • Embedded 96 levels of 16 bit data output FIFO
  • 10000 g high shock survivability
  • ECOPACK® RoHS and “Green” compliant


LIS3DH APPLICATIONS:

  • Motion activated functions
  • Free-fall detection
  • Click/double click recognition
  • Intelligent power saving for handheld devices
  • Pedometer
  • Display orientation
  • Gaming and virtual reality input devices
  • Impact recognition and logging
  • Vibration monitoring and compensation
