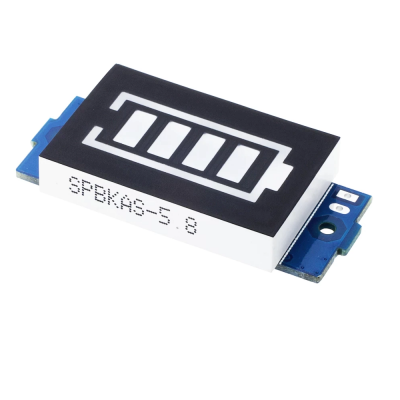

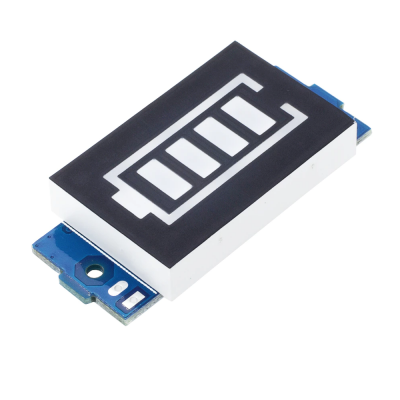

2S Lithium battery power indicator 8.4v Blue

2S Lithium battery power indicator 8.4v Blue
  • Stock: In Stock
  • Brand: xcluma
  • Model: BE-002440
  • Weight: 6.00g
  • SKU: BE-002440
  • MPN: BE-002440
Rs94.00
(GST +18%Extra)

Product description

Features:

  • Battery type electricity quantity display
  • Wide application fields: lithium battery
  • Using Method: connect display board positive and negative port with tested battery positive and negative port, digital tube will display real-time battery electricity quantity
  • Digital Coroutine red, display block blue (when battery electricity quantity is full, it will be all on)

Display Electricity Quantity Parameter:

  • When battery voltage is over N*3.3V,it will illuminate 1 block electricity quantity (note represents battery quantity)
  • When battery voltage is over N*3.5V,it will illuminate 2 blocks electricity quantity
  • When battery voltage is over N*3.7V,it will illuminate 3 blocks electricity quantity
  • When battery voltage is over N*3.9V,it will illuminate 4 blocks electricity quantity
  • When battery voltage is less than N*3.3V,4 blocks display will be off; it represents battery is less than 3.3V,and you can charge the battery

Note

  • Connect the positive and negative terminals of the display board to the positive and negative terminals of the battery under test, The digital tube displays real-time battery power.
  • This model is not waterproof, please be waterproof if you use it outdoors, because the electronic components need to be used in a dry environment.
  • Lithium battery NiMH battery Available power display panel.
