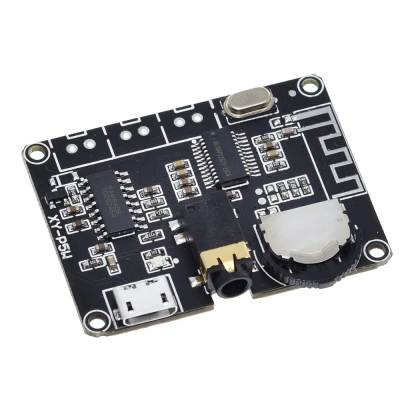

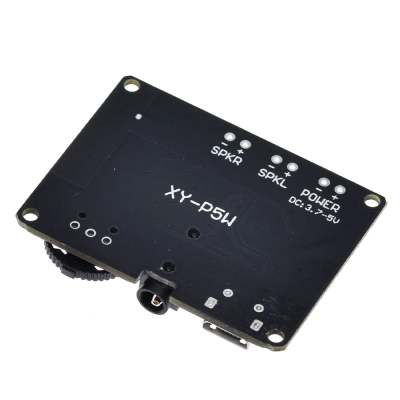

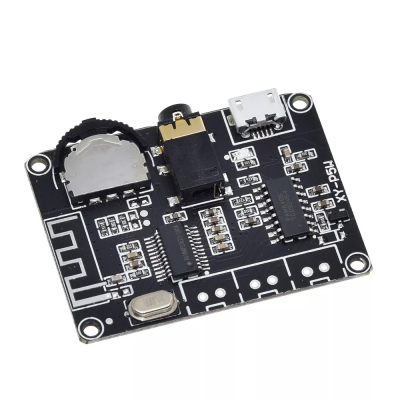

3W/5W PAM8406 Bluetooth 5.0 Stereo Audio Power Amplifier Board AMP Module XY-P5W

3W/5W PAM8406 Bluetooth 5.0 Stereo Audio Power Amplifier Board AMP Module XY-P5W
3W/5W PAM8406 Bluetooth 5.0 Stereo Audio Power Amplifier Board AMP Module XY-P5W
3W/5W PAM8406 Bluetooth 5.0 Stereo Audio Power Amplifier Board AMP Module XY-P5W
3W/5W PAM8406 Bluetooth 5.0 Stereo Audio Power Amplifier Board AMP Module XY-P5W
3W/5W PAM8406 Bluetooth 5.0 Stereo Audio Power Amplifier Board AMP Module XY-P5W
3W/5W PAM8406 Bluetooth 5.0 Stereo Audio Power Amplifier Board AMP Module XY-P5W
3W/5W PAM8406 Bluetooth 5.0 Stereo Audio Power Amplifier Board AMP Module XY-P5W
3W/5W PAM8406 Bluetooth 5.0 Stereo Audio Power Amplifier Board AMP Module XY-P5W
3W/5W PAM8406 Bluetooth 5.0 Stereo Audio Power Amplifier Board AMP Module XY-P5W
3W/5W PAM8406 Bluetooth 5.0 Stereo Audio Power Amplifier Board AMP Module XY-P5W
3W/5W PAM8406 Bluetooth 5.0 Stereo Audio Power Amplifier Board AMP Module XY-P5W
  • Stock: In Stock
  • Model: BE-002516
  • SKU: BE-002516
Rs399.00
Ex Tax: Rs338.14
Description
• It is a high-power stereo Bluetooth5.0 amplifier module.
• Width work voltage range. Applicable multiple type speakers.
• Power reverse protection, Thermal protection.
• Anti-reverse connection, automatic back connection.
• It is ideal for DIY wireless Bluetooth speakers and transponders

Specifications
• Item Type: Bluetooth amplifier module
• Material: electronic components

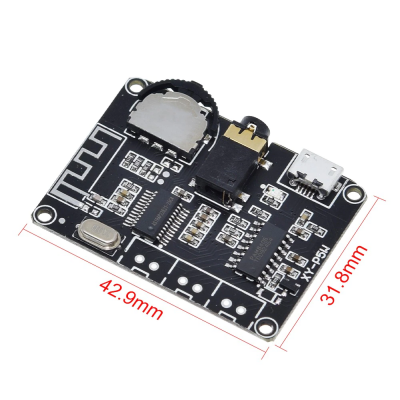

• Size: 43x32mm/1.6x1.2in
• Colour: Black
• Model: XY-P5W
• Supply voltage: 3.7-4.2V Lithium battery, Micro USB DC5V
• Bluetooth version: 5.0
• Connect distance: 15 meters(visible)
• Output mode: stereo
• Output power: 3W*2 @5V 4Ω, 5W*2 @5V 2Ω
• Speaker selected: 2Ω/5W, 4Ω/3W, 8Ω/2W
• Quantity: 1 PC

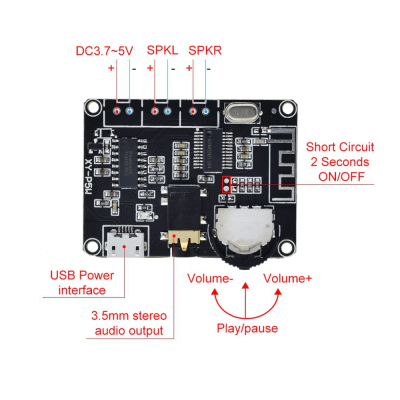

Operation
• Supply the module, the blue LED is on, and it goes into Bluetooth mode Waiting for pairing after playing the audio tone; Turn on phone Bluetooth, “XY-P5W” will be searched and display; Click the “XY-P5W” ,it will connect to the board.
• It connects successfully with an audio tone; After this you can play the music.
• The power amplifier board will prepare for the next pairing with an audio tone, When the Bluetooth is disconnected.

Note:
• Transition: 1cm=10mm=0.39inch
• Please allow 0-1cm error due to manual measurement
