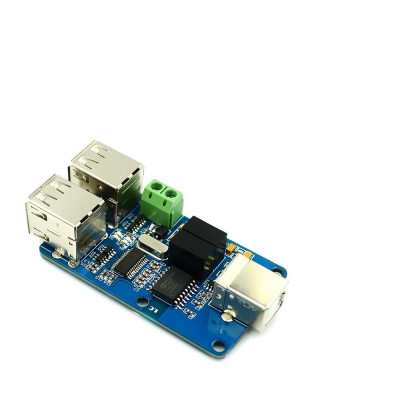

4 way USB Isolator ADUM3160 Support USB control transmission
- Stock: In Stock
- Model: BE-003088
- SKU: BE-003088
Rs846.00
+GST Extra
4 way USB Isolator ADUM3160 Support USB control transmission
- USB 4-way isolation module compatible
with USB 2.0
- Compatible with USB2.0,
- Isolation voltage of ADUM3160:2500V
- Power module isolation voltage: 1500V
- Support USB low speed 1.5mbps and full
speed 12Mbps, not pure high-speed equipment
- Provides fully isolated
1.5 Mbps and 12 Mbps data rates, isolated 1500V voltage, no external power Source, no driver required. USB port from external strong power supply, strong
signal interference, USB for the computer.
- Power supply: from USB port of computer
host.
- External power supply DC5v, with
reverse connection protection.

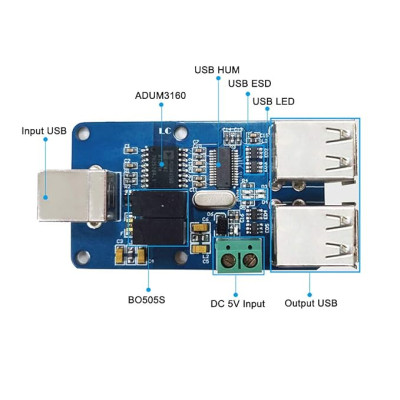

- On-board output power of jinshengyang
B0505S is 1x2W. When the total operating current of USB device is >400mA,
External DC5V power supply is required.
- Drive free, support hot plug, plug and
play.
- Each USB port is equipped with USB
dedicated ESD protection chip.
- The output four USB ports are not
isolated from each other, and each output channel is equipped with USB status
indicator.
- After a test support equipment:
- Full equipment:
- USB flash drive, digital camera, card
reader, mobile hard disk, U aegis,, USB hub, AVRJTAG, AVRISP, AVRISPMKII, S -
Lab, JET51, JJ L, FET430UIF, PICKIT2, XDS100, for LPC cc-link, ICD2, USB serial
port (FT232, CP2102, PL2303, CH341 chips).
