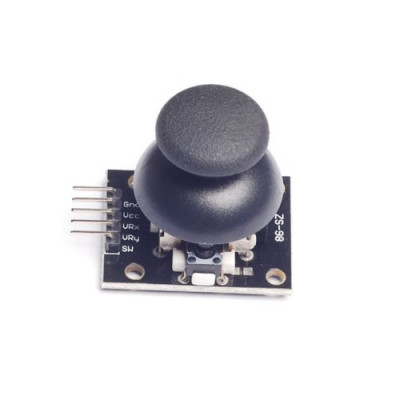

Biaxial Ps2 Game Rocker Button Level Sensor Joystick Electronic Blocks

Biaxial Ps2 Game Rocker Button Level Sensor Joystick Electronic Blocks
  • Stock: In Stock
  • Brand: xcluma
  • Model: BE-000399
  • Weight: 11.00g
  • MPN: BE-000399
Rs28.00
(GST +18%Extra)

DESCRIPTION:

PS2 game rocker JoyStick electronic building blocks

  • Rocker with high quality, long service life, stable performance
  • Two way analog output, digital output all the way
  • X, Y axis output for two potentiometer, can read twist Angle by the AD conversion Down by the rocker, can be sent to all the way light touch switch, as the digital output, has pulled
  • For two degrees of freedom steering gear yuntai control or other remote proportional control
  • Applicablearduino platform, interface arduino compatible with sensors

This joystick provides a smooth, fluid motion, strong click reply and a straight forward interface.

There are 5 pins on the board: VCC, GND, X, Y and Button. Connect the module using 5V power supply with VCC and GND. The joystick status can be read from the X,Y and utton pins.

When using the 5V power supply, the default analogue output for X,Y is 2.5V. With the direction of the arrow, the voltage goes up to 5V and the opposite direction it goes down to 0V.

This module uses a 5V power supply. The PS2 set the two-channel analog output module and one channel of the digital output, the output value respectively corresponding to (X, Y) axis offset, its type is analog; button indicates whether the user pressed in the Z-axis, its type digital switching amount. Module integrated power indicators which show the working status. Applicable on the Arduino sensor expansion board plug.

Dimensions: 1.57 in x 1.02 in x 1.26 in (4.0 cm x 2.6 cm x 3.2 cm)

+ 5V
- GND
B button to receive a digital IO ports
X X-axis offset, the use of analog IO port read out
Y Y-axis offset, the use of analog IO port read out
