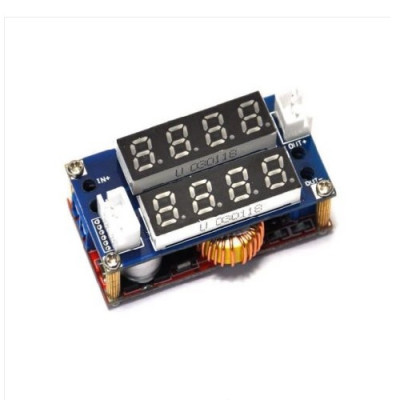

CC/CV Display Step Down 5A Adjustable Module LED Panel Volt & Ammeter

CC/CV Display Step Down 5A Adjustable Module LED Panel Volt & Ammeter
  • Stock: Out Of Stock
  • Brand: xcluma
  • Model: BE-001487
  • MPN: BE-001487
Rs508.00
(GST +18%Extra)

DESCRIPTION:

  • Module Properties: non-isolated constant current and voltage module

  • Rectification: non-synchronous rectification

  • Conversion efficiency: 95% (the highest)

  • Voltmeter Ammeter

    • Measurement accuracy: 0.1%

    • Refresh rate: about 200ms / times

    • Display: 0.28"digital tube

    • Current Range 0A-5A

    • Voltage range 5V-30V

    • Display Color Red

SPECIFICATION:

  • Input voltage: 5V-32V
  • Output voltage: 0.8V-30V
  • Output current: adjustable maximum 5A
  • Switching frequency: 300KHz
  • Output ripple: 50mV (max) 20M bandwidth
  • Load Regulation: ± 0.5%
  • Voltage Regulation: ± 2.5%
  • Operating Temperature: -40℃to +85℃
  • Size: 51 * 26.3 * 14 (L * W * H) (mm)
