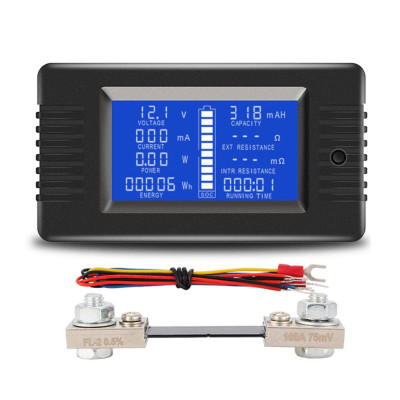

PZEM-015 100A DC Voltage Amp Power Capacity Meter with External Shunt

Description

• Multifunctional Battery Meter has high-precision chip control, good electronics, safe reliable soldering process.
• The LCD screen of this battery monitor can bring you an accurate visual experience and more convenient data reading
• 9 groups of measurement parameters can be displayed at the same time, all aspects of testing, various parameters are clearly visible
• The battery detector is installed through push-in terminals, no screws are required, so installation is quick and easy
• The battery tester is mainly used to measure the voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, remaining power, energy consumption and running time of various types of batteries

Features

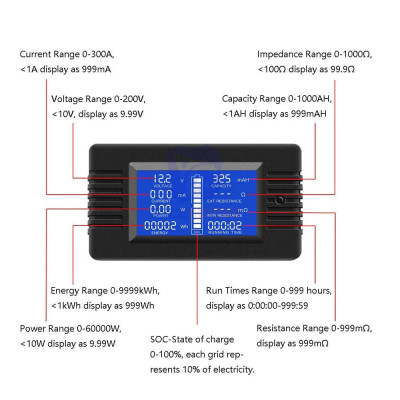

• Current measurement range: 0-300A, <1A shows 999Ma
• Voltage measurement range: 0-200V, <10V display 9.99V
• Power measurement range: 0-60000W, <10W display 9.99W
• Energy consumption measurement range: 0-9999kWh, <1kWh display 999Wh
• Impedance measurement range: 0-1000 Ω, <100 Ω shows 99.9 Ω
• Capacity measurement range: 0-1000AH, <1AH shows 999mAH
• Internal resistance measurement range: 0-999mΩ, format: 999mΩ
• Running time range: 0-999 hours, format 0:00:00~999:59 (overflow to 0)
• Remaining battery power: Displayed by the battery symbol, a total of 10 grids, each grid represents 10% of the electricity.
