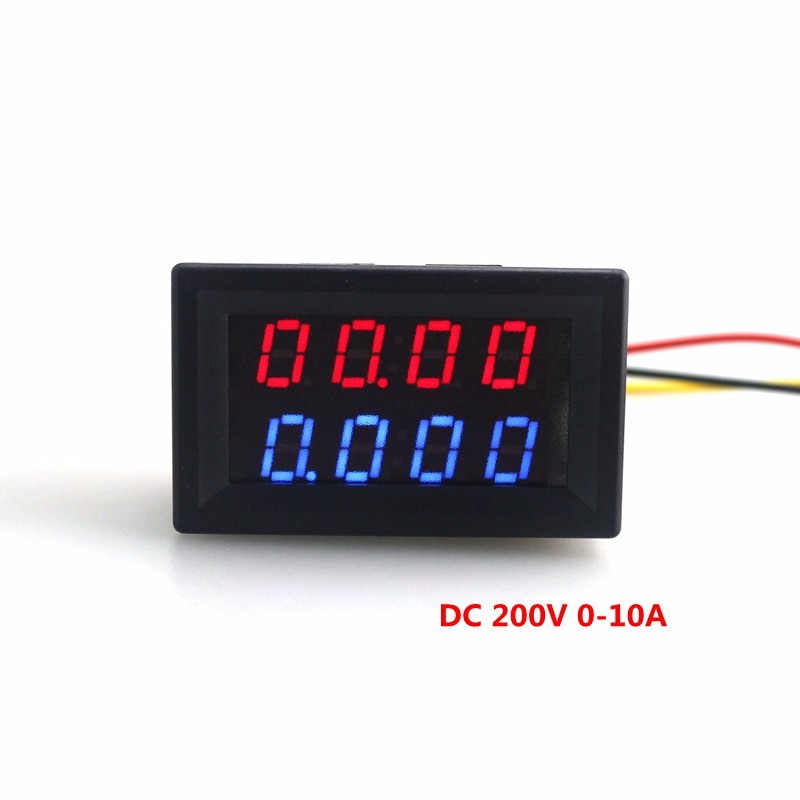

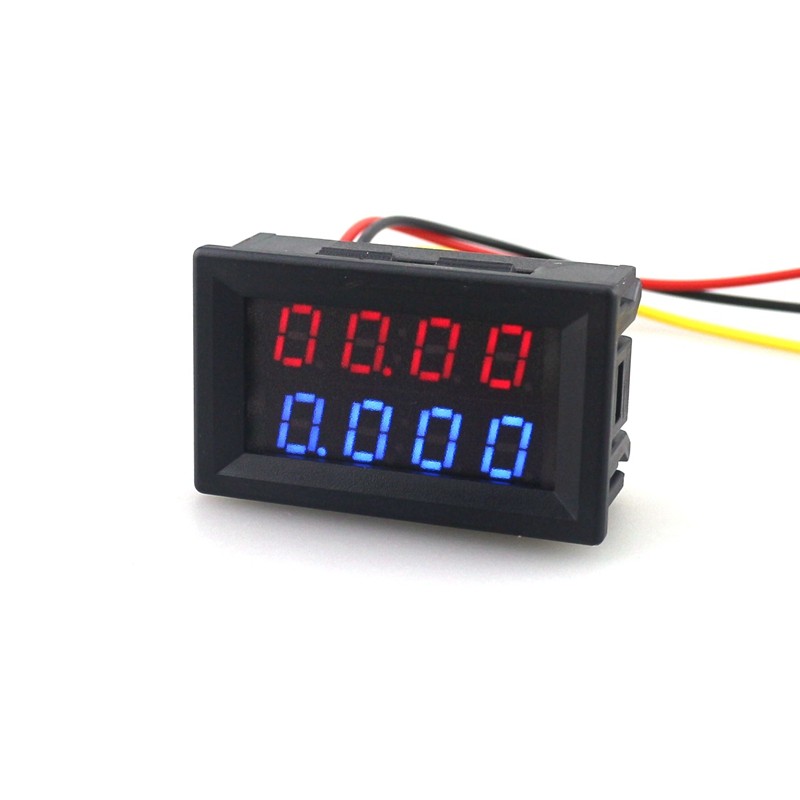

Digital 4 Bit DC 200V 0-10A Voltmeter Ammeter Panel Red Blue LED Dual Display

FEATURES:

  • Working voltage:DC4V-28V
  • Working current:<20mA
  • Display: 0.28" Two color blue and red
  • Measuring range:DC 0-200V 0-10A  Built-in shunt
  • Refresh rate: about 1S / 3times
  • Measure accuracy:
  • Operating temperature: -10 to 65° c
  • Working pressure: 80 to 106 kPa
  • size :48×29×20 mm
  • Current: Range x 0.08%+Two decimal point
  • Voltage:Range x 0.08%+Two decimal point
  • High precision, four digital display

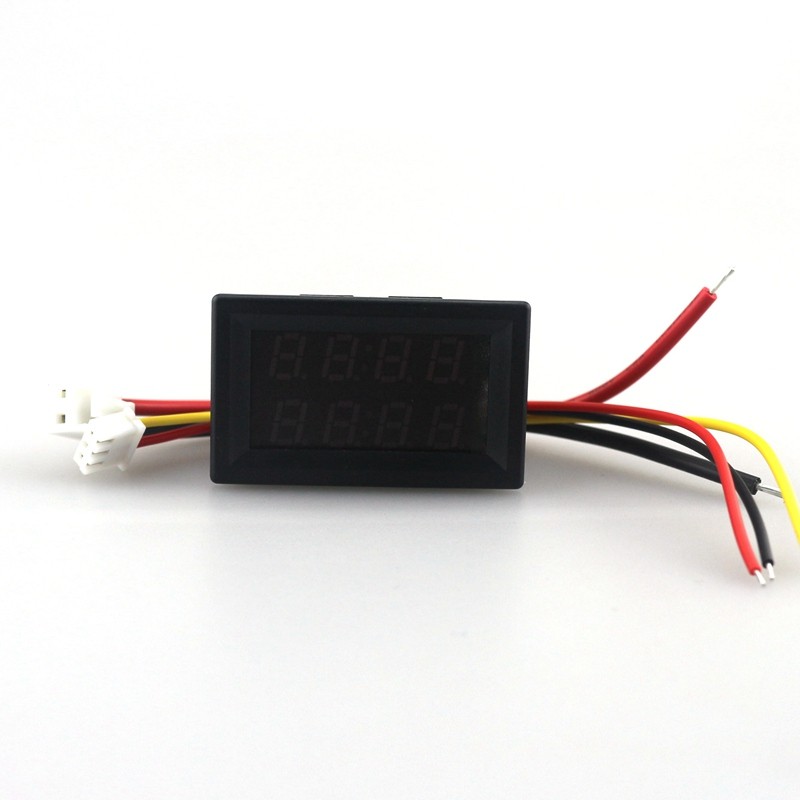

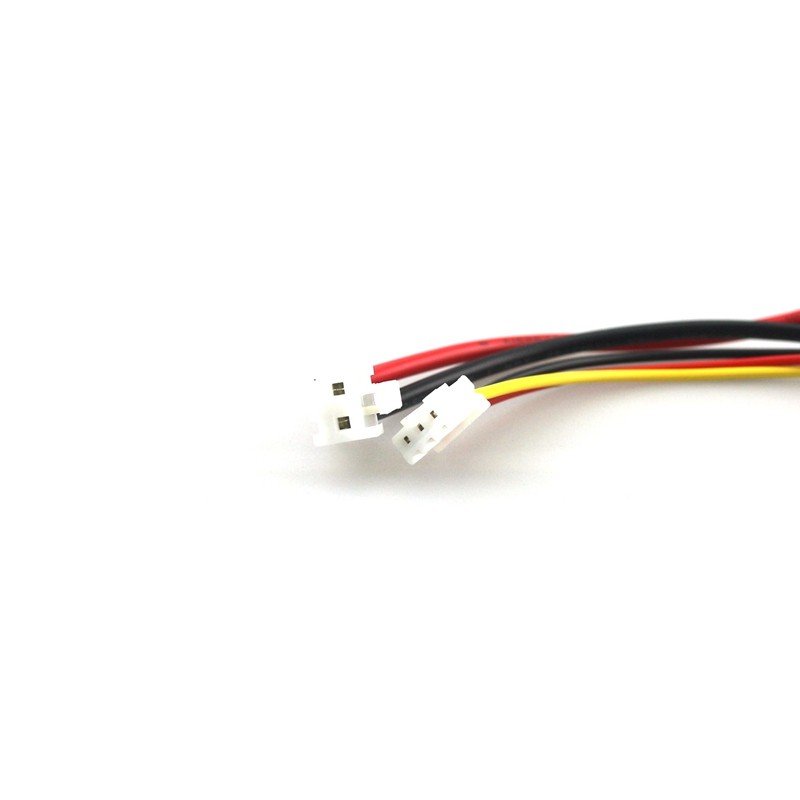

ABOUT WIRING:

  • Red line thin: power supply+
  • Red line (thick): IN+, current input
  • Yellow line (thick):PW+, measuring terminal voltage input positiv
  • Black line thick: COM, common measurin

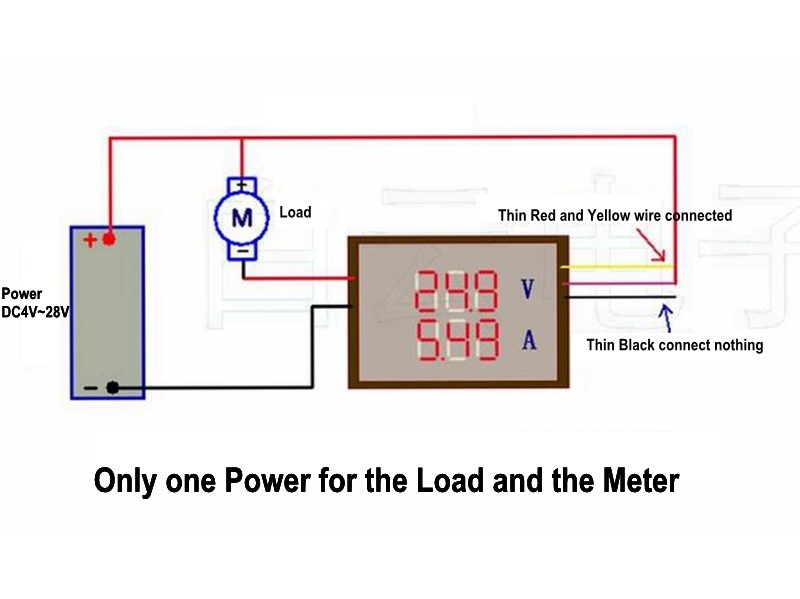

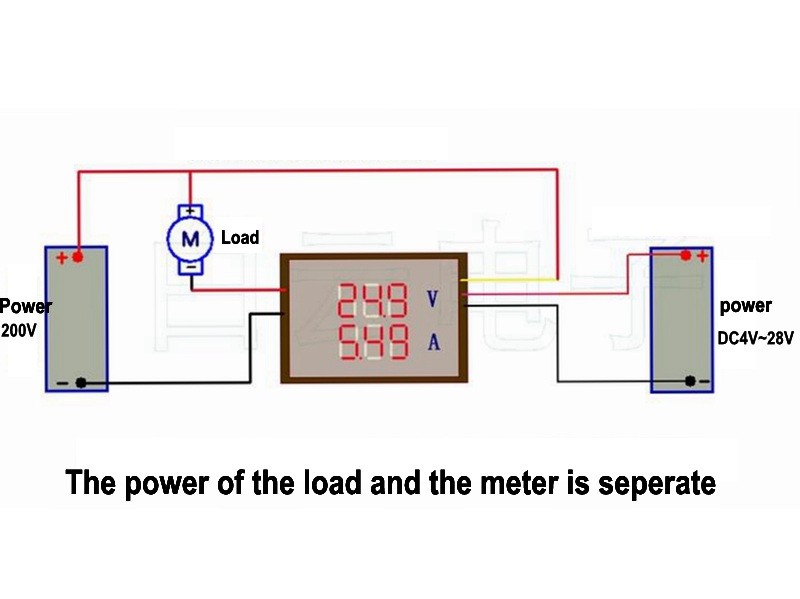

Note:Please follow the wiring diagram, special attention, the load can only be connected to the positive,

not negative! Otherwise burn the table!

Package Contents

  • 1pcs X 200V 10A DC Digital LED Amp Volt Meter

891234567
