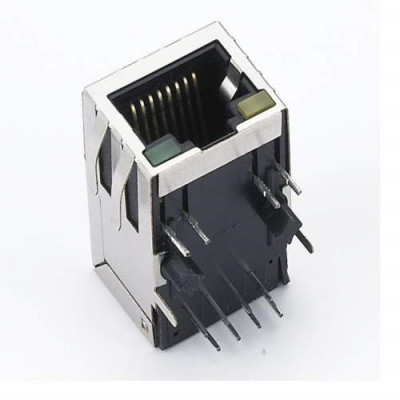

Gigabit RJ45 Connector with LED

Gigabit RJ45 Connector with LED
Out Of Stock
Thanks for Your Trust and Support!!!
Thanks for Your Trust and Support!!!
Gigabit RJ45 Connector with LED
  • Stock: Out Of Stock
  • Brand: xcluma
  • Model: BE-000826
  • MPN: BE-000826
0 reviews - Write a review
Rs60.00
(GST +18%Extra)
Add to Cart
Direct Checkout Ask Question
Add to Wish List Compare this Product
free shipping Order Above 499--**
Dispatch within 24 Hours*
7 Days Replacement Only

DESCRIPTION:

  • 10/100/1000Base-Tx RJ45 single port 1X1  Side Entry (Right Angle) with LED
  • Single port 1X1 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:10
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant
  • Length:21.3mm
  • LEDS:Yes
  • EMI finger:NO

APPLICATION:

Integrated RJ45 connector main used to :
10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.
