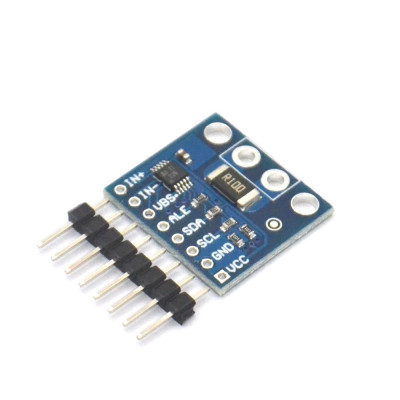

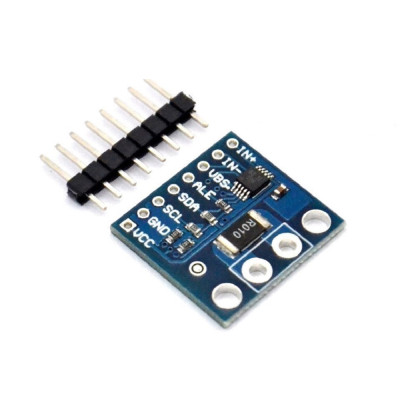

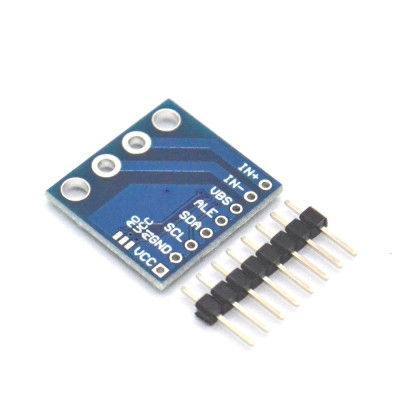

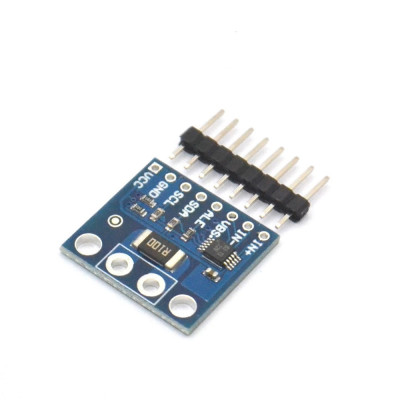

INA226 Bi-Directional Current and Power Monitor Module High-Side or Low-Side Measurement with IIC Compatible 0V to 36V

INA226 Bi-Directional Current and Power Monitor Module High-Side or Low-Side Measurement with IIC Compatible 0V to 36V

Product Features

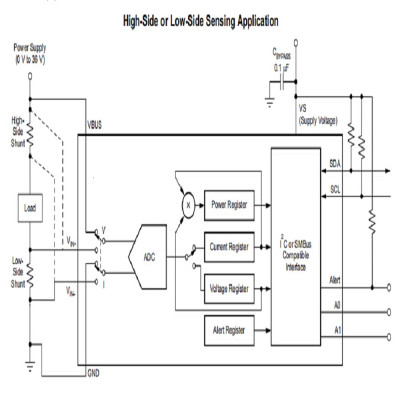

• High-Side or Low-Side Sensing
• Reports Current, Voltage, and Power
• Application :Servers,Telecom Equipment,Computing,Power Supplies
• High Accuracy: – 0.1% Gain Error (Max) – 10 μV Offset (Max
• The INA226 is a current shunt and power monitor with an I2C- or SMBUS-compatible interface.
• The device monitors both a shunt voltage drop and bus supply voltage.
• Programmable calibration value, conversion times, and averaging, combined with an internal multiplier.
• Enables direct readouts of current in amperes and power in watts.
