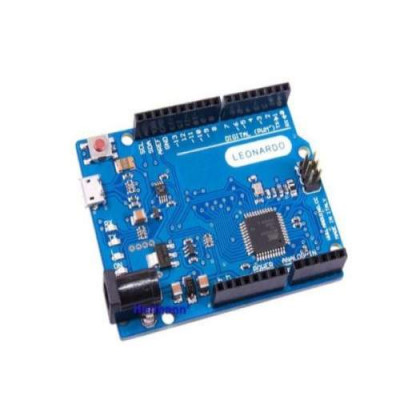

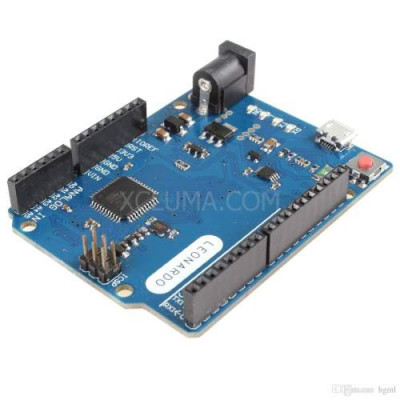

Leonardo R3 with usb cable Module Arduino Compa

Leonardo R3 with usb cable Module Arduino Compa
Leonardo R3 with usb cable Module Arduino Compa
Leonardo R3 with usb cable Module Arduino Compa
Leonardo R3 with usb cable Module Arduino Compa
Leonardo R3 with usb cable Module Arduino Compa
  • Stock: In Stock
  • Model: BE-000129
  • Weight: 52.00g
Rs792.00
(GST +18%Extra)

DESCRIPTION:

Compared to other versions of the Arduino using a separate USB-Serial converter chip, the Leonardo innovatively uses a single-chip solution. Only with a Atmega32u4 USB communication and control. The Leonardo differs from all preceding boards in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Leonardo to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port. It also has other implications for the behavior of the board. Greatly improve the applications. Arduino Leonardo need the new version above Arduino IDE1.01.

SPECIFICATION:



  • Microcontroller: ATmega32u4
  • Operating voltage: 5V
  • Input voltage(recommended): 7V - 12V
  • Input voltage(limits): 6V - 20V
  • Digital I / O pins: 20
  • PWM channels: 7
  • Analog input channels: 12
  • DC current per I / O pin: 40mA
  • DC current for 3.3V pin: 50mA
  • Flash memory: 32KB(ATmega32u4) of which 4KB used by bootloader
  • SRAM: 2.5KB(ATmega32u4)
  • EEPROM: 1KB(ATmega32u4)
  • Clock speed: 16MHz
