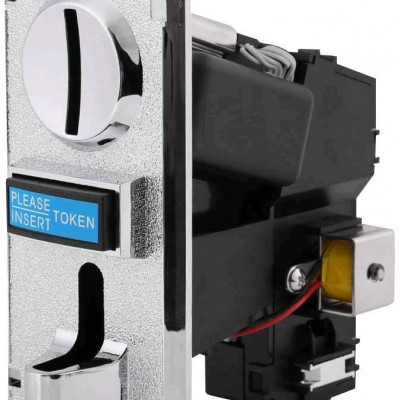

COIN ACCEPTOR Multi Coin Acceptor Coin Slot for Arcade Game Mechanism Vending Machine

COIN ACCEPTOR Multi Coin Acceptor Coin Slot for Arcade Game Mechanism Vending Machine

• HIGH PRECISION: Identify the true or false coin according to the material, diameter and thickness of the COINS, the accuracy is high.
• FOR 6 KINDS OF COINS: Accept 6 different kinds of coins at the same time, CPU process control, automatically remembers the set of sample COINS.
• WIDE APPLICATION: Can be applied in game machines, vending machines, coin-operated telephone, coin-operated washing machines, coin-operated toy cars, massage chairs, etc.
• CUSTOMIZED SET: Can add the function of cumulative signal output and time control, prohibiting coin acceptor.
• MULTI-FUNCTIONAL: Anti-phishing, anti-mixed coin, anti-shock, anti-high frequency, and can connect counter.

Specifications:

Back shell material: PC Plastic

Identify Accuracy Rate: 95%

Applying Coins Diameter: 15-29mm/0.59-1.14inch

Applying Coins Thickness: 1.8mm-3.0mm

Atmospheric Pressure: 80Kpa-106Kpa

Operating Voltage: DC12V ± 10%

Working Current: 50mA

Moment Maximum Current: 350mA (less than 0.5S)

Humidity: ≤95%

Storing Temperature: -20℃--+85℃

Operating Temperature: -10℃--+60℃

Recognition Speed: ≤0.6sec

Product size:  64 x 124 x 143mm/2.52 x 4.88 x 5.63inch

Screw hole: 5 x 5mm/0.20 x 0.20inch

Hole pitch: 46 x 97mm/1.81 x 3.82inch

Package includes:

1 x coin acceptor

4 x Screw

4 x Nut

1 x Connection Line

1 x User Manual
