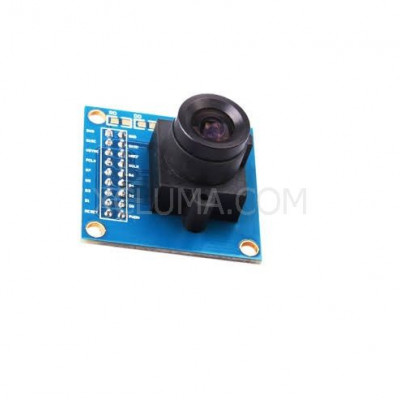

OV7670 Camera lens image sensor SCM Acquisition Module for Arduino robot

OV7670 Camera lens image sensor SCM Acquisition Module for Arduino robot
Out Of Stock
OV7670 Camera lens image sensor SCM Acquisition Module for Arduino robot
  • Stock: Out Of Stock
  • Model: BE-000340
  • Weight: 15.00g
Rs151.00
(GST +18%Extra)

DESCRIPTION:

High sensitivity suitable for illumination applications
Low voltage suitable for embedded applications
Standard SCCB interface. compatible with I2C Interface
RawRGB. RGB (GRB4: 2:2. RGB565/555/444). YUV (4:2:2) and YCbCr (4:2:2) output format
Supports VGA. CIF. and a variety of sizes from CIF to 40x30
VarioPixel sub- sampling mode
automatically affect control functions include : automatic exposure control . automatic gain control. automatic white balance. automatic elimination of light stripes. automatic black level calibration image quality control including color saturation . hue . gamma . sharpness ANTI_BLOOM
ISP has a compensation function to eliminate noise and bad points
Support for image scaling
compensation for loss of light lens
50/60Hz automatic detection
Saturation automatically adjust (UV adjustment )
Automatically adjust edge enhancement
Noise Reduction automatically adjust
Parameter:
1. Photosensitive Array: 640 x 480.
2. IO Voltage: 2.5V to 3.0V.
3. Operating Power: 60mW/15fpsVGAYUV.
4. Sleeping Mode: <20μA.
5. Operating Temperature: -30 to 70 deg C.
6. Output Format: YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit).
7. Lens Size: 1/6".
8. Vision Angle: 25 degree.
9. Max. Frame Rate: 30fps VGA.
10. Sensitivity: 1.3V / (Lux-sec).
11. Signal to Noise Ratio: 46 dB.
12. Dynamic Range: 52 dB.
13. Browse Mode: By row.
14. Electronic Exposure: 1 to 510 row.
15. Pixel Coverage: 3.6μ m x 3.6μm.
16. Duck Current: 12 mV/s at 60°c .
16. PCB Size (L x W): Approx. 1.4 x 1.4 inch / 3.5 x 3.5 cm
