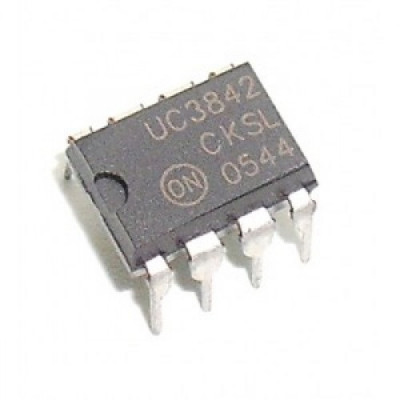

UC3842 Current Mode PWM Controller

DESCRIPTION:
The UC3842/UC3843/UC3844/UC3845 are fixed frequency current-mode PWM controller. They are specially designed for Off-Line and DC to DC converter applications with minimum external components. These integrated circuits featrue a trimmed oscillator for precise duty cycle control, a temperature compensated reference, high gain error amplifier, current sensing comparator and a high current totempole output for driving a Power MOSFET.

SPECIFICATIONS:
  • Fixed Frequency Current-Mode PWM Controller
  • Low Start Up Current
  • Maximum Duty Clamp
  • UVLO with Hysteresis
  • Operating Frequency up to 500kHz
