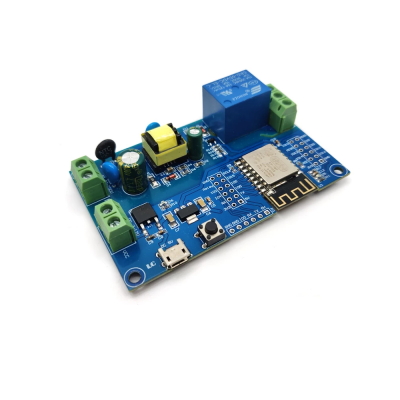

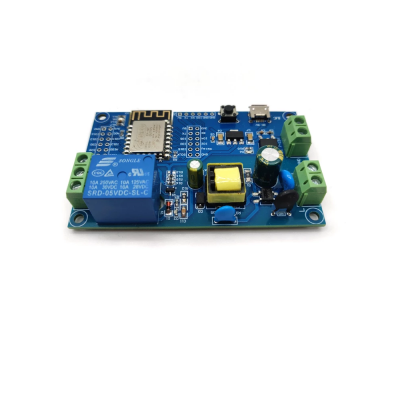

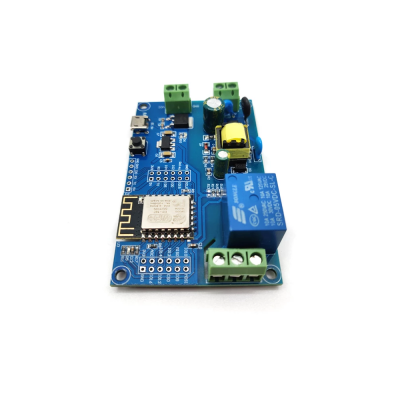

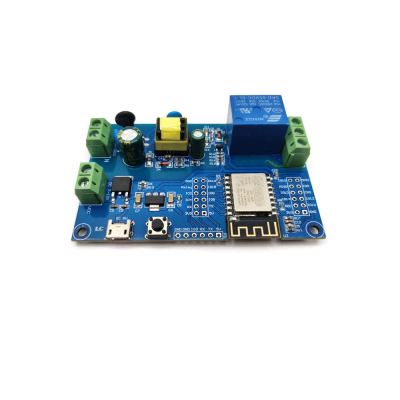

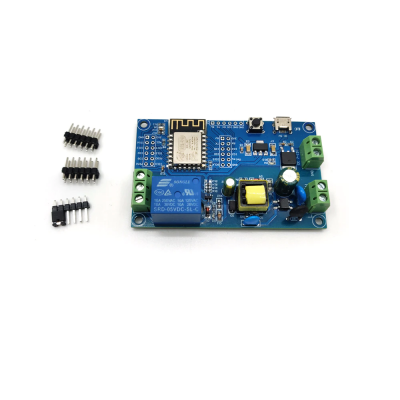

ESP826 WIFI Single Relay ESP-12F Development Board with onboard AC/DC Power

ESP826 WIFI Single Relay ESP-12F Development Board with onboard AC/DC Power
  • Stock: In Stock
  • Brand: xcluma
  • Model: BE-002796
  • Weight: 60.00g
  • SKU: BE-002796
  • MPN: BE-002796
Rs838.00
(GST +18%Extra)

Description

• The ESP8266 single-channel relay development board is equipped with an ESP-1 2F WIFI module, all I/O ports are exported, and supports various power supply methods such as AC90-250V/DC7-12V/USB 5V
• Suitable for ESP8266 secondary development and learning, smart home wireless control and other occasions.

Features

·        Onboard mature and stable ESP-12F Wifi module, large capacity 4M Byte Flash

·        The I/O port and UART program download port of the WiFi module are all led out, which is convenient for secondary development

·        Onboard AC-DC power supply module, power supply mode supports AC90-250V/DC7-1 2V/USB5V

·        Onboard WiFi module RST reset button

·        ESP-12F supports the use of development tools such as Eclipse

·        Onboard 1 5V relay, output switch signal, suitable for controlling the working voltage Load within AC 250V/DC 30V

·        Onboard power indicator, programmable LED and relay indicator


Product manual:

https://www.mediafire.com/file/ha2grpl0c5obyt3/LC-Relay-ESP12-1R-MV_EN.zip/file
