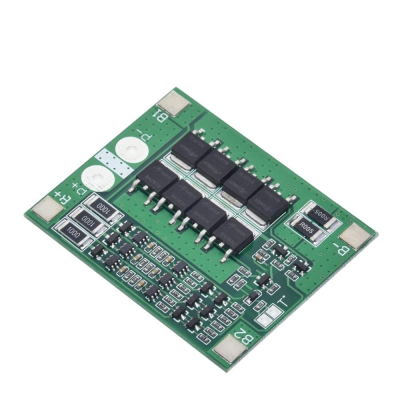

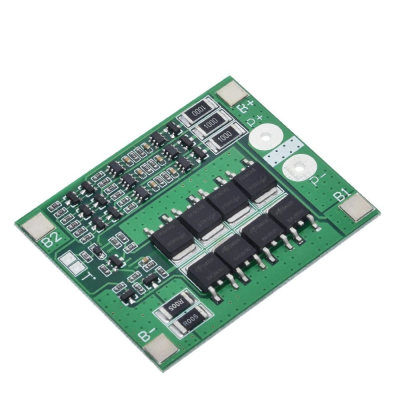

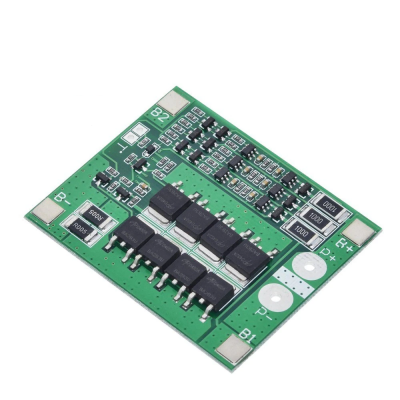

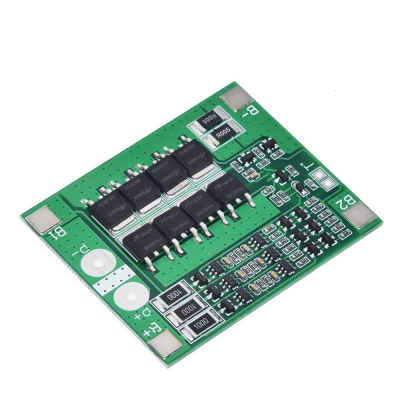

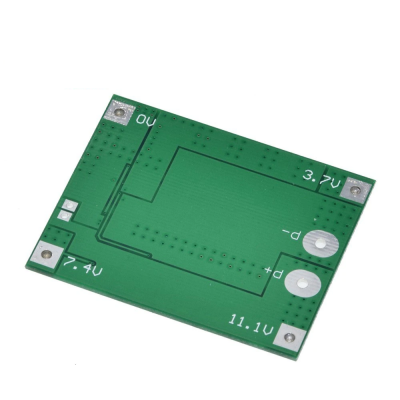

3S 25A Li-ion 18650 BMS PCM Battery Protection Board BMS PCM With Balance For li-ion Lipo Battery Cell Pack Module

3S 25A Li-ion 18650 BMS PCM Battery Protection Board BMS PCM With Balance For li-ion Lipo Battery Cell Pack Module
3S 25A Li-ion 18650 BMS PCM Battery Protection Board BMS PCM With Balance For li-ion Lipo Battery Cell Pack Module
3S 25A Li-ion 18650 BMS PCM Battery Protection Board BMS PCM With Balance For li-ion Lipo Battery Cell Pack Module
3S 25A Li-ion 18650 BMS PCM Battery Protection Board BMS PCM With Balance For li-ion Lipo Battery Cell Pack Module
3S 25A Li-ion 18650 BMS PCM Battery Protection Board BMS PCM With Balance For li-ion Lipo Battery Cell Pack Module
3S 25A Li-ion 18650 BMS PCM Battery Protection Board BMS PCM With Balance For li-ion Lipo Battery Cell Pack Module
3S 25A Li-ion 18650 BMS PCM Battery Protection Board BMS PCM With Balance For li-ion Lipo Battery Cell Pack Module
3S 25A Li-ion 18650 BMS PCM Battery Protection Board BMS PCM With Balance For li-ion Lipo Battery Cell Pack Module
3S 25A Li-ion 18650 BMS PCM Battery Protection Board BMS PCM With Balance For li-ion Lipo Battery Cell Pack Module
3S 25A Li-ion 18650 BMS PCM Battery Protection Board BMS PCM With Balance For li-ion Lipo Battery Cell Pack Module
3S 25A Li-ion 18650 BMS PCM Battery Protection Board BMS PCM With Balance For li-ion Lipo Battery Cell Pack Module
3S 25A Li-ion 18650 BMS PCM Battery Protection Board BMS PCM With Balance For li-ion Lipo Battery Cell Pack Module
3S 25A Li-ion 18650 BMS PCM Battery Protection Board BMS PCM With Balance For li-ion Lipo Battery Cell Pack Module
  • Stock: In Stock
  • Model: BE-002350
  • SKU: BE-002350
Rs186.00
(GST +18%Extra)

3S 25A Li-ion 18650 BMS PCM Battery Protection Board BMS PCM With Balance For li-ion Lipo Battery Cell Pack Module

Features:

1) high-accuracy voltage detection circuit;

2) terminal of the charger using high voltage device;

3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);

4) MOS transistor can control the battery charge and discharge;

5) low standby current consumption.

Brief Parameter:

Over Charge voltage:4.25-4.35v±0.05v
Over Discharge voltage: 2.3-3.0v±0.05v
Max Working current:25A
Max peak current:35-40A
Working temperature:-40---+50
Storage Temperature:-40-- +80
Small current:50uA
Life cycle:more then 30000 hours
Resistance:Less than 100mΩ
Short Cut:Protectable,Charge can repair

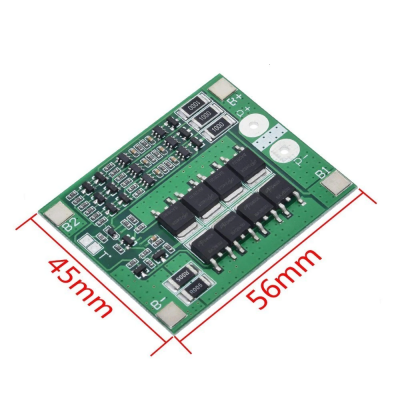

Size:56*45*4.0mm

Application:

Vacuum cleaner,massager battery pack,LED backup power supply,12V li-ion electronics, solar power led, ect
