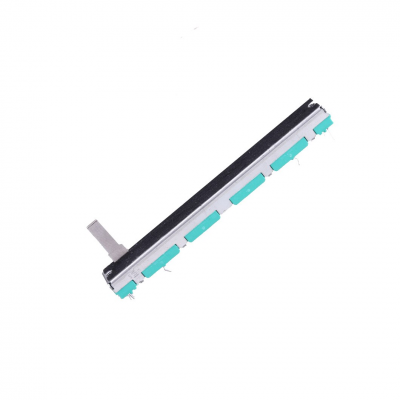

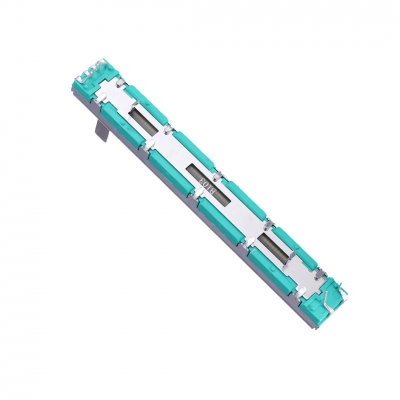

75mm B103 10K Ohm Double Slide Potentiometer Linear Module

Description

·        B103 10K Dual Channel Straight Sliding Potentiometer whose resistance can be varied by moving the handle linearly from one end to another.

·        It is a 10K Linear Potentiometer, which means when the handle is at one end the resistance is 0 ohms.

·        Moving the handle towards the other end will change the resistance towards 10K as per the handle movement.

·        The potentiometer comes with a metal handle which gives the best feel for usage.

Features:

·        Two-channel B10K (B103)

·        Handle height 15mm

·        Adjustment Type: Slide Adjustment

Specification:

·        Resistance Value: 10k Ohm

·        Adjustment Type: Slide Adjustment

·        Mechanical Characteristic:

·        Nominal Resistance: 10K

·        Rated Power: 0.25 (W)

·        Resistance Tolerance: ±20 (%)

·        Sliding Noise: Less Than 68m (V)

·        Resolution: 100 (%)

·        Zero Resistance: 2 (Ω)

·        Contact Resistance: 5 (Ω)

·        Insulation Resistance: 100 (MΩ)

·        Whole Length: 75mm / 3.0
