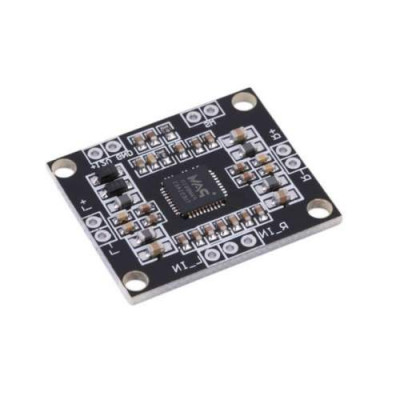

PAM8610 Digital Amplifier Board 2x15W Two Channel Stereo Class D

PAM8610 Digital Amplifier Board 2x15W Two Channel Stereo Class D
PAM8610 Digital Amplifier Board 2x15W Two Channel Stereo Class D
PAM8610 Digital Amplifier Board 2x15W Two Channel Stereo Class D
PAM8610 Digital Amplifier Board 2x15W Two Channel Stereo Class D
PAM8610 Digital Amplifier Board 2x15W Two Channel Stereo Class D
  • Stock: In Stock
  • Model: BE-000312
  • Weight: 4.00g
Rs200.00
Ex Tax: Rs169.49
Technical parameters:

1. Supply voltage: DC 7V-15V

2. Output power: 10w + 10w (8 load)

3. Efficiency: 90%

4. Shutdown Current: 4uA

5. Quiescent current; 20mA

6. SNR: 86%

7. Total harmonic distortion: 5W / 1KHz / 8 ---- 0.1%

8. Frequency range: 20Hz-20KHz

9. Input impedance: 15K

10. Output Impedance: 4-8

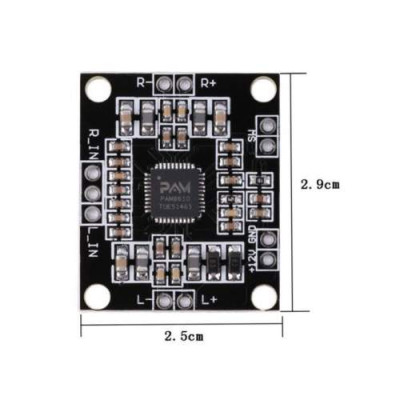

11. Amplifier board size: 30mm * 25mm * 2.5mm



How to use:

1. The power supply voltage limit is 16.5V, do not use more than this voltage.

2. The power supply is recommended for 12v, 3A power supply filter better

3. 4-8 inch stereo speakers recommended.

4. Do not short-circuit the audio output to each other or shorted to ground.

5. Carefully check before electricity, ensure wiring is correct before electricity.





Shipping Included:

1 x   Digital PAM8610 2x15W 2*15 W Two Channel Stereo Class Amplifier Board
