- Stock: In Stock
- Brand: xcluma
- Model: BE-002761
- Weight: 88.00g
- SKU: BE-002761
- MPN: BE-002761

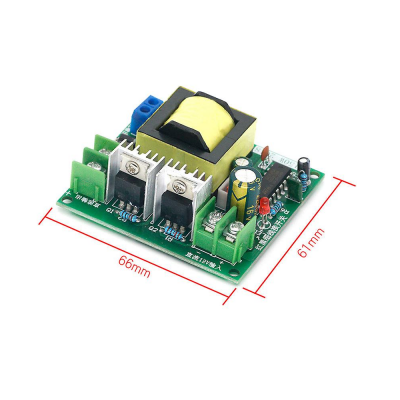

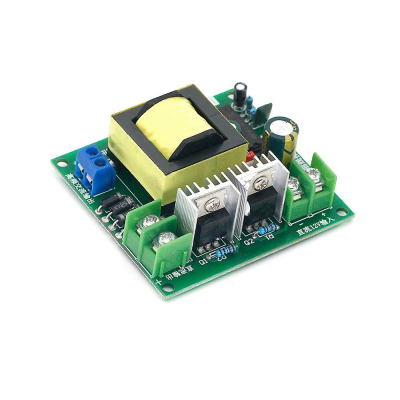

Description
①High voltage and high frequency AC output port, can be connected with tungsten bulb, heating wire and other resistive load or voltage multiplier rectifier circuit
②High voltage DC output port can be connected with switching power load, such as small electrical appliances with nominal 100-240V AC transmission, U-shaped energy-saving lamp, spiral energy-saving lamp, set-top box, mobile phone charger, DC small motor, small hand drill and other small tools
Specifications
• Input voltage: DC12V

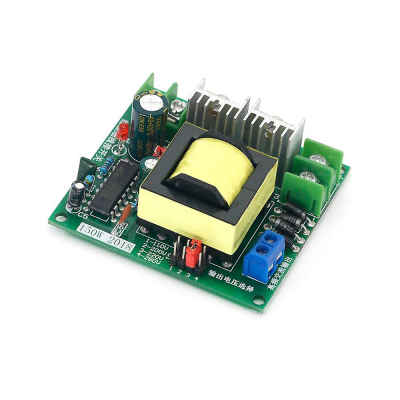

• Output voltage: 110V/200V/220V/280V (marked on the PCB. Can be set with the
jumper on board)
• Output waveform: high frequency or DC square wave (unfiltered)
• Output Power: Rated 150W, Max 200W (When over 100W, please use cooling fan)
• Current with 12V interface (no load): 250mA
• Operating frequency: 37kHz
• Integrated chip: ST SG3525A or KA3525, depending on different production
batches.
• FET: RU6099R or DX3205R, depending on different production batches
Cautions
• We recommend to connect to "DC output", because normal electric
drives are using normal rectifier. If connected to "high frequency AC
output", the rectifier will quickly heat up and be damaged, the diode will
be destroyed.
• This board has high frequency square wave AC output and DC output, so it
can't drive inductive electrical devices (such as motor, fan, resistor
capacitor, volt drop drives, small LED lights, etc.)
• When connecting to small loads (phone chargers, DVD, etc.), we recommend
connecting a lower voltage output, such as 200V.
• When working with high load (above 100W) or for a long time, please use a
larger heatsink and fan for cooling.
• Do not measure the polarity. You need enough current for power supply and power
cord.
