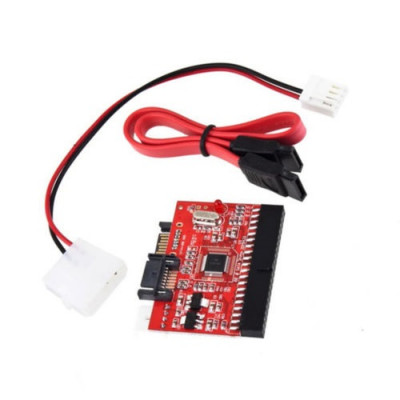

IDE HDD to SATA Serial ATA Adapter Converter

DESCRIPTION:

• NEW IDE HDD to SATA Serial ATA Converter Adapter
• This Adapter Does it All , SATA Hard Drive To IDE Converter or IDE Drive to SATA Host Converter.This is a Bi-Direction converter for serial and parallel ATA translation .
• it includes the Serial ATA PHY , Link, Transport and Parallel ATA (application layer) controller.
• the Serial ATA physical , link and transport layers are compliant to serial ATA I/II .
• this Converter support a 3GHz Data Rate.
• With LED indicated Power
• Easy install & no Driver Needed
• Serial ATA 1.0/2.0 Specification Compliant
• Automatic Serial ATA 1.5 Gbps Speed negotiation
• ATA /ATAPI PIO mode 0 to 4
• ATA / ATAPI Ultra DMA of Transfer rate 16.7 , 25, 33, 48, 66, 100, 133 , 150, 300MB/s.
• ATA /ATAPI LBA48 addressing node associated with 2-byte sector count
• Support Serial ATA hot-Plug
• Ultra low power Consumption
• Work for both AC and DC couple between the transmitter and the receiver
• Provide Specified OOB signal detection and Transmission
• Support Spread Spectrum Clocking to reduce EMI
• Support Partial / Slumber Power Management
• Provide adjustable TX signal amplitude and pre-emphasis level
• Slave Support
• Support for Windows 98/SE/ME/2000/XP/Vista
