100% brand new and high quality
Charge module- Linear charging.
It still retain the input voltage wiring solder joints, can be very convenient to DIY
Input voltage- 4.5V-5.5V.
Full charge voltage- 4.2V.
Led indicator- red is charging Green is full charged.
Input interface- micro USB.
Work temperature- -10 cto +85 c.
1. Ampere meter can only be connected to 5v input end of the module.
2. It is better that the charging current is 37% of the battery capacity. If you charge to the battery of 1000mAH, current of 400 is enough.
3. The connection wire should not be too thick.
4. Make sure the connect point is good.
5. If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is protection function, auto-substract the charging current to avoid burn damage to chip.
6. NO Reveral polarity.

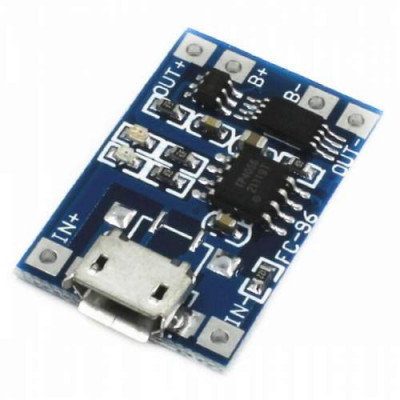

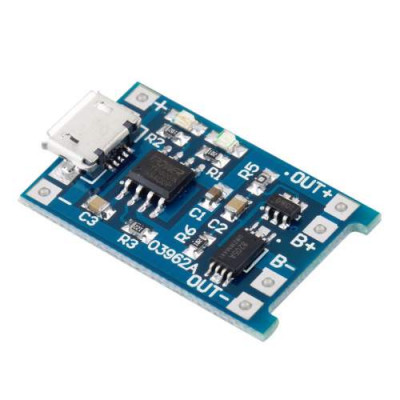

MICROUSB 5V 18650 LITHIUM BATTERY 1A CHARGING MODULE w TP4056 PROTECTION
