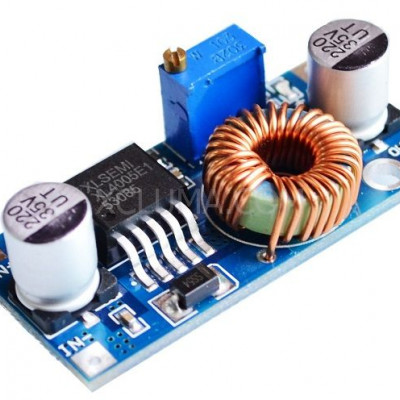

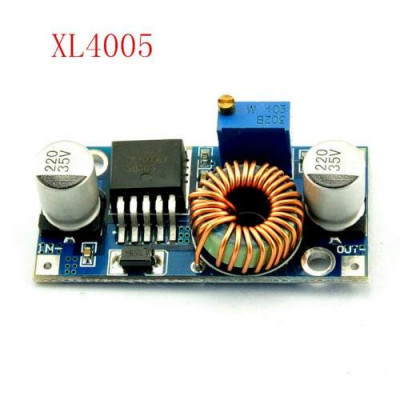

DC-DC XL4005 DSN5000 5A CURRENT ADJUSTABLE STEP DOWN POWER SUPPLY

DC-DC XL4005 DSN5000 5A CURRENT ADJUSTABLE STEP DOWN POWER SUPPLY
DC-DC XL4005 DSN5000 5A CURRENT ADJUSTABLE STEP DOWN POWER SUPPLY
-60 %
DC-DC XL4005 DSN5000 5A CURRENT ADJUSTABLE STEP DOWN POWER SUPPLY
DC-DC XL4005 DSN5000 5A CURRENT ADJUSTABLE STEP DOWN POWER SUPPLY
DC-DC XL4005 DSN5000 5A CURRENT ADJUSTABLE STEP DOWN POWER SUPPLY
  • Stock: In Stock
  • Model: BE-000019
  • Weight: 13.00g
Rs324.00
Rs128.00
Ex Tax: Rs108.47
Product description:


LM2596 LM2596S ADJ POWER SUPPLY DC-DC STEPDOWN module 5V/12V/24V adjustable Voltage regulator 3A

DIY mobile power supply, car power, communications equipment power supply, etc.

  • input voltage: 5V-32V
  • output voltage: 0.8V-24V
  • output current: peak 5A (more than 3.5A work need to strengthen The cooling)
  • Conversion efficiency:90%
  • size:43*21*14mm(L*W*H)
The step-down module can easily reach 4 A, 50 w, add heat sink can reach 75 w,

Modules window: 5 A high-power high efficiency low ripple

Module performance and features:

Module properties

  • The isolation step-down module (BUCK)
  • 4-38 v input voltage: (please try not to exceed 38 v input)
  • Output voltage: 1.25-32 v continuous
  • adjustable Output current: 0-5 A, it is recommended to use in 4.5 A
  • Output power: it is recommended that use within the 75 w, more than 50 w please add heat sink.
  • Working temperature: – 40 ~ + 85 degrees
  • Working frequency: 180 KHZ
  • Conversion efficiency: up to 96% (efficiency and the input, output voltage, current and pressure difference)
  • Load regulation: S (I) 0.8% or lessVoltage regulation: S (u) of 0.8% or less
  • Power light: yesShort circuit protection: (limit current 8 a)
  • Overtemperature protection: (overtemperature after automatic shut off output)
  • Input reverse connect protection: no, (such as the need to please in the input string into the high current diode)
  • Installation method: 2 3 mm wire the self-contained
  • Connection mode: welding, V – IN for the input, V – OUT for the output
  • Module size: 23 mm, 18 mm long 54 mm wide


Areas of application:XL4005 LM2596 -DC-DC

Package Include:
1X LM2596 DC-DC XL4005 DSN5000 5A LARGE CURRENT ADJUSTABLE STEP DOWN POWER SUPPLY MODULE
