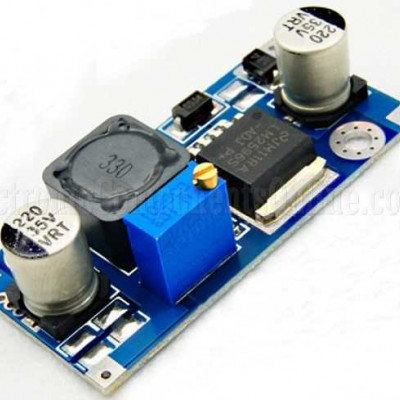

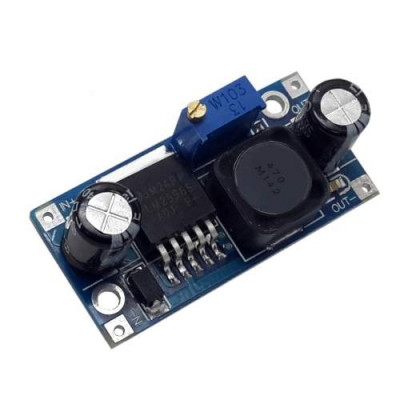

LM2596S DC-DC Step-down module 5V/12V/24V adjustable Voltage regulator 3A

High performance DC to DC step-down adjustable power supply module, switching regulator.

1. Input voltage: 3.2-40V

2. Output Voltage: 1.5-35V (adjustable) ,input must least high 1.5V than output

3. Output current: rated current 2A,  maximum 3A (need to add heat sink), if the output power greater than 15W, combined heat sink is proposed.

4. Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)

his is a high performance DC to DC step-down adjustable power supply module, switching regulator.

5. Minimum dropdown voltage:1.5V

6.Voltage regulation: ± 0.5%

7. Dynamic response speed: 5% 200uS

8. circuit protection: SS36

9. Operating temperature: Industrial grade (-40  to +85 ) (output power 10W or less)

10. Load regulation: ± 0.5%

Size:(Long)50mm *(wide1)23 mm *(high)14mm

Write a review

Please login or register to review

LM2596S DC-DC Step-down module 5V/12V/24V adjustable Voltage regulator 3A

  • Views: 7609
  • Product Code: BE-000046
  • Availability: In Stock
  • Rs76.00
  • Excluding Tax: Rs64.41

Tags: interface board, lm2596, lm2596s, lm 2596, lm-2596s, lm-2596, step down, buck
