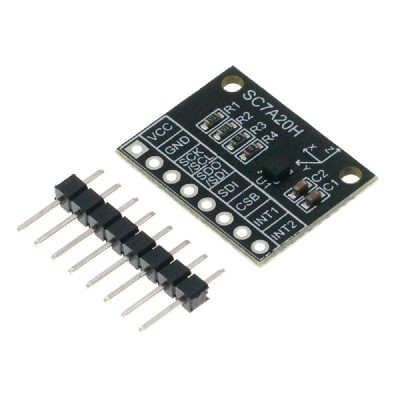

SC7A20H High Precision 3-Axis Gravity Acceleration Tilt Angle Sensor Module IIC/SPI Transmission

SC7A20H High Precision 3-Axis Gravity Acceleration Tilt Angle Sensor Module IIC/SPI Transmission

• Wide voltage range 1.71V-3.6V
• 1.8V compatible with digital I/O ports
• In low power mode, the power supply current is as low as 0.5μA@1.8V@1.56HZ
• 2G/+4G/+8G/+16G dynamic full range
• 12bit data output
• SC7A20H is a high-precision digital three-axis acceleration sensor chip with more built-in functions, lower power consumption, smaller size and more accurate measurement.

• The chip communicates with MCU through IC/SPI interface, and the acceleration measurement data is obtained by interrupt or query. INT1 and INT2 interrupt pins provide a variety of internal automatic detection interrupt signals,
• Suitable for a variety of motion detection occasions, interrupt sources include 6D/4D direction detection interrupt signal, free fall detection interrupt signal, sleep and call detection interrupt signal, click and double click detection interrupt signal.
• The chip built-in high-precision calibration module, the sensor offset error and gain error precise compensation.
• ±2G, ±4G, ±8G and ±16G four adjustable full range measurement range, flexible measurement of external acceleration, output data rate between 1.56HZ and 4.434kHz optional.
• The built-in self-testing function of the chip allows customers to detect system functions during system testing, eliminating complex turntable testing.
• Package includes:1x xcluma SC7A20H High Precision 3-Axis Gravity Acceleration Tilt Angle Sensor Module IIC/SPI Transmission
