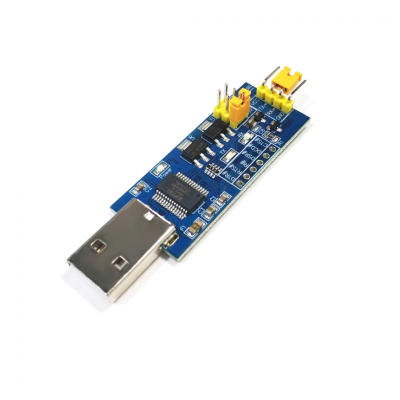

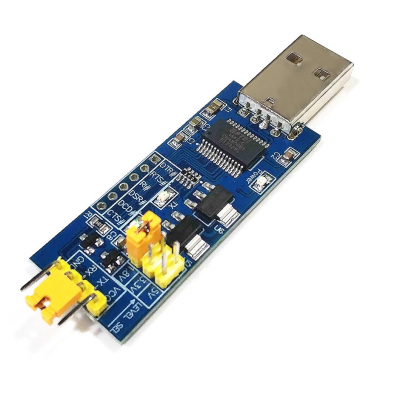

USB to TTL Serial Board Support 5V/3.3V/1.8V Level Conversion Board FT232RL

USB to TTL Serial Board Support 5V/3.3V/1.8V Level Conversion Board FT232RL
  • Stock: Out Of Stock
  • Brand: xcluma
  • Model: BE-002813
  • Weight: 8.00g
  • SKU: BE-002813
  • MPN: BE-002813
Rs388.00
(GST +18%Extra)

Description:
It is a USB to TTL serial port. It supports 5V/3.3V/1.8V three level switching/TX/RX/RTS/CTS/DTR/DCD/RI/ can be switched. It is input via USB and output via TTL interface.

Feature:

• uses the FT232RL main control chip, which is fast and stable.
• supports Windows XP/WIN7/WIN8/WIN10 32/64-bit systems.
• The stable speed can reach 3Mbps (3 times of 921600).
• The power supply VCC and signal level (including flow control pins CTS/RTS/DTR/RI/DCD) can be freely switched between 5V/3.3V/1.8V, adapting to systems with different voltages.
• It has three indicator lights with integrated power supply (blue), receiving (green), and sending (red).
• It has a 500mA self-recovery fuse onboard, which will automatically disconnect when over-current/short-circuit, which effectively protects the computer's safety.
• Its power supply capability is strong, and the maximum output current is 500mA, which can drive most of the SCM system boards.
• It integrates protection diodes, and the signal line will not damage the module if an abnormal voltage occurs occasionally.
• it leads to the CTS/RTS/DSR/RI/DCD signal pins, which can facilitate hardware flow control.
• It is small in size and highly integrated, and only occupies the width of a USB interface, even if the USB port is very close to the computer, it will not affect the insertion of other devices.

Parameter:


• Product Name: USB to TTL Serial Port
• Output Voltage: DC 5V/3.3V/1.8V
• Output Current:500mA
• Chip: FT232RL
• Work Temperature: -25~85
• Work Humidity:5%~95%RH
• Size:72*21*13mm
