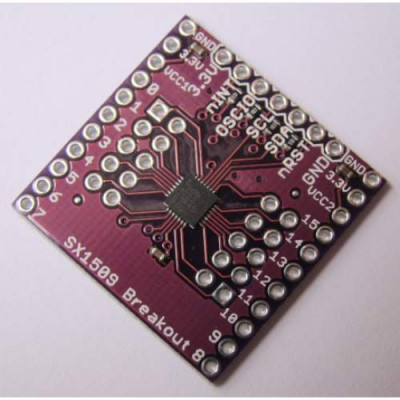

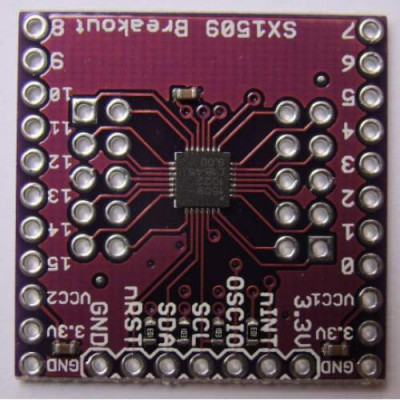

SX1509 16 Output I/O Expander Breakout Support Low Voltage Level Shifting

DESCRIPTION:

The CJMCU-SX1509 can leverage your I2C interface for 16 extra channels of GPIO. And that’s not all! This handy device also contains a fully programmable LED driver and a keypad scanning engine which enables continuous keypad monitoring of up to 64 keys! Since the I/O banks can operate between 1.2V and 3.6V (5.5V tolerant) independent of both the core and each other, this device can also work as a level-shifter.

FEATURES:

• Enable Direct Level Shifting Between I/O Banks and Host Controller
• 5.5V Tolerant I/Os, Up to 15mA Output Sink on All I/Os
• Integrated LED Driver with Intensity Control
• On-Chip Keypad Scanning Engine Supports Up to 8x8 Matrix (64 Keys)
• 16 Channels of True Bi-directional Style I/O
• 400kHz I2C Compatible Slave Interface
