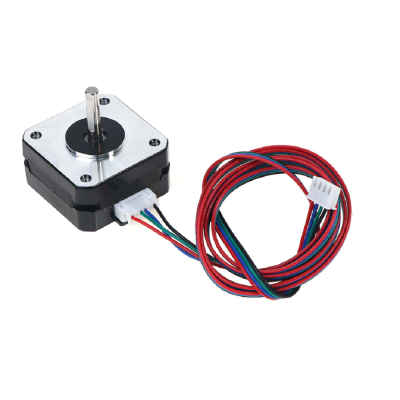

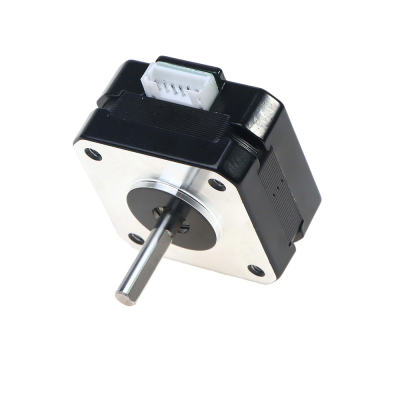

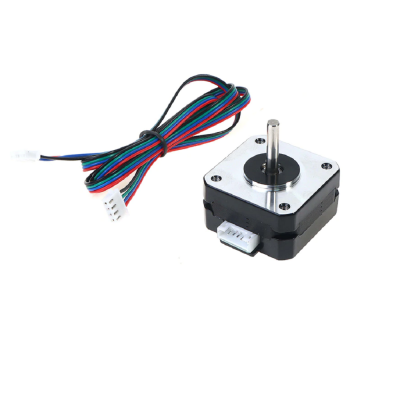

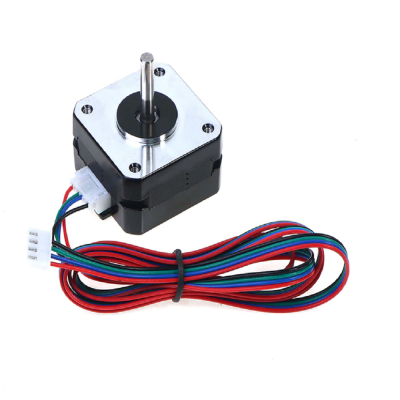

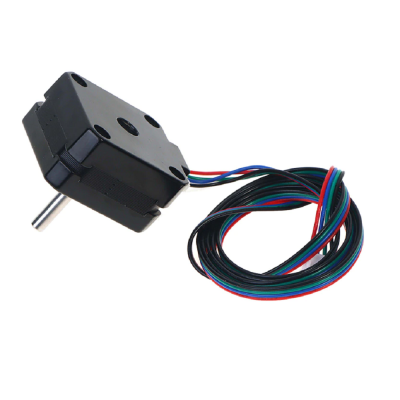

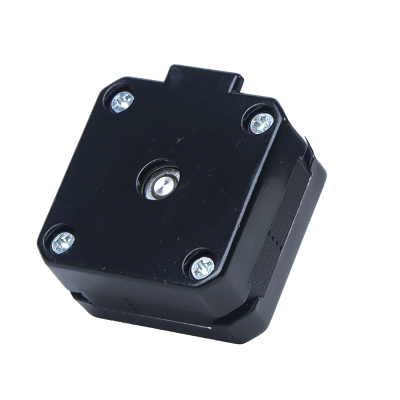

Titan Extruder Stepper Motor 4-lead Nema 17 22mm 42 Motor 3D Printer Extruder

Titan Extruder Stepper Motor 4-lead Nema 17 22mm 42 Motor 3D Printer Extruder
Titan Extruder Stepper Motor 4-lead Nema 17 22mm 42 Motor 3D Printer Extruder
Titan Extruder Stepper Motor 4-lead Nema 17 22mm 42 Motor 3D Printer Extruder
Titan Extruder Stepper Motor 4-lead Nema 17 22mm 42 Motor 3D Printer Extruder
Titan Extruder Stepper Motor 4-lead Nema 17 22mm 42 Motor 3D Printer Extruder
Titan Extruder Stepper Motor 4-lead Nema 17 22mm 42 Motor 3D Printer Extruder
Titan Extruder Stepper Motor 4-lead Nema 17 22mm 42 Motor 3D Printer Extruder
Titan Extruder Stepper Motor 4-lead Nema 17 22mm 42 Motor 3D Printer Extruder
Titan Extruder Stepper Motor 4-lead Nema 17 22mm 42 Motor 3D Printer Extruder
Titan Extruder Stepper Motor 4-lead Nema 17 22mm 42 Motor 3D Printer Extruder
Titan Extruder Stepper Motor 4-lead Nema 17 22mm 42 Motor 3D Printer Extruder
Titan Extruder Stepper Motor 4-lead Nema 17 22mm 42 Motor 3D Printer Extruder
Titan Extruder Stepper Motor 4-lead Nema 17 22mm 42 Motor 3D Printer Extruder
  • Stock: In Stock
  • Model: BE-002479
  • SKU: BE-002479
Rs677.00
(GST +18%Extra)

Description

·        Product name: Bipolar Stepper Motor

·        Phase: 2 Phase

·        Voltage: 6V 12V 24V

·        Current: 1 A/Phase

·        Resistance: 4.0 ± 10%Ω/Phase, Inductance: 3.2 ± 20% MH/Phase



Features

·        Product name: Bipolar Stepper Motor

·        Phase: 2 Phase

·        Voltage: 6V 12V 24V

·        Current: 1 A/Phase

·        Resistance: 4.0 ± 10%Ω/Phase

·        Inductance: 3.2 ± 20% MH/Phase

·        Holding Toque: ≥16N.cm

·        Detent Toque: cm

·        Insulation Class: B

·        Step Angle: 1.8 deg.+-5%

Warning:

·        Make sure the motor connects to a constant current or chopper drive controller before you test motor.

·        Connecting the motor directly to a power supply will destroy the motor.
