VIPer22A SMPS 20W SMART

VIPer22A SMPS 20W SMART
Thanks for Your Trust and Support!!!
Thanks for Your Trust and Support!!!

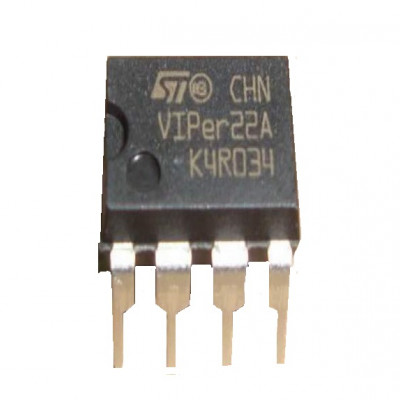

VIPer22A SMPS 20W SMART
  • Stock: In Stock
  • Brand: xcluma
  • Model: BE-000712
  • Weight: 10.00g
  • MPN: BE-000712
0 reviews - Write a review
Rs29.00
(GST +18%Extra)
Add to Cart
Direct Checkout Ask Question
Add to Wish List Compare this Product
free shipping Order Above 499--**
Dispatch within 24 Hours*
7 Days Replacement Only

DESCRIPTION:

The VIPer22A-E combines a dedicated current mode PWM controller with a high voltage power MOSFET on the same silicon chip.

Typical applications cover off line power supplies for battery charger adapters, standby power supplies for TV or monitors, auxiliary supplies for motor control, etc. The internal control circuit offers the following benefits:
Large input voltage range on the VDD pin accommodates changes in auxiliary supply voltage. This feature is well adapted to battery charger adapter configurations.
Automatic burst mode in low load condition.
Overvoltage protection in HICCUP mode.

SPECIFICATIONS:
  • Fixed 60 kHz switching frequency
  • 9 V to 38 V wide range VDD voltage
  • Current mode control
  • Auxiliary undervoltage lockout with hysteresis
  • High voltage start-up current source
  • Overtemperature, overcurrent and overvoltage protection with auto-restart
  • Input Voltage AC Min: 195V
  • Input Voltage AC Max: 265V
  • AC / DC Converter Case Style: DIP
  • No. of Pins: 8
  • Power Rating: 20W
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 150°C
