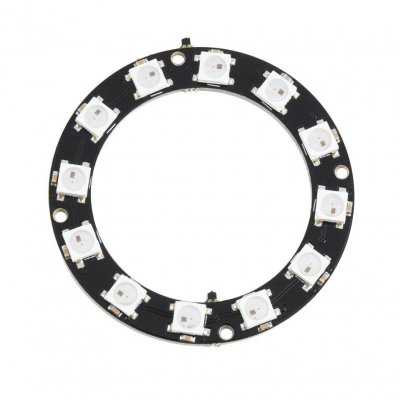

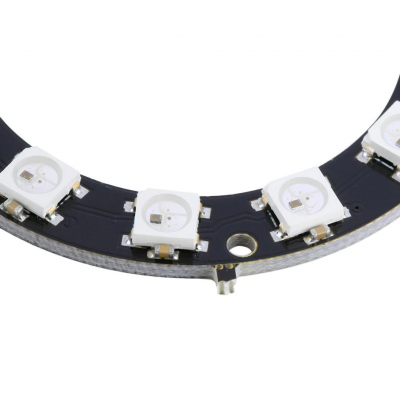

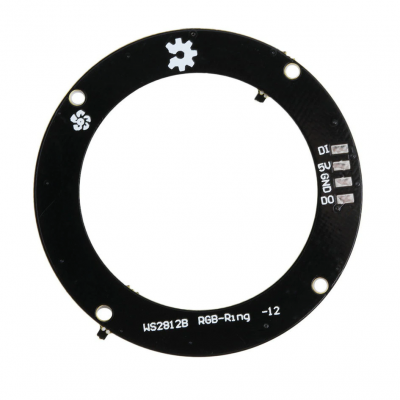

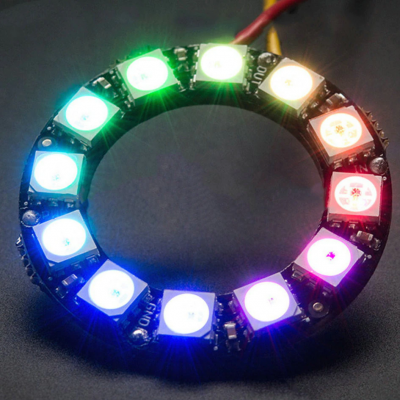

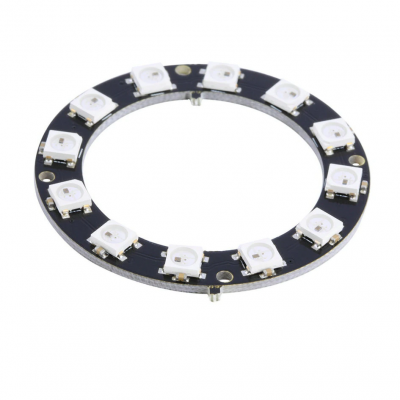

WS2812 5050 12-Bit RGB LED Ring

WS2812 5050 12-Bit RGB LED Ring
  • Stock: In Stock
  • Brand: xcluma
  • Model: BE-002217
  • Weight: 8.00g
  • SKU: BE-002217
  • MPN: BE-002217
(GST +18%Extra)

WS2812 5050 12-Bit RGB LED Ring

100% Brand new and high quality!
Intelligent reverse polarity protection, power supply reverse polarity will not damage for IC.
IC control circuit and a power LED spot light utility.
Control circuit chip with RGB components in a package in 5050, to form a complete external control pixels.
built-in signal shaping circuit, any one pixel after receiving the signal through the waveform shaping and then output to ensure line waveform distortion will not accumulate.
Built-in power-on reset and brown-out reset circuit.
trichromatic color of each pixel can realize 256 highlighted, complete 16777216 colors of all true color display, the scanning frequency is not less than 400Hz / s.
serial cascade interface, through a signal line to complete the receiving and decoding of data.
transfer transmission distance between any two points in less than 5 meters without any additional circuitry.
When the refresh rate of 30 frames / sec, cascading number of not less than 1024 points.
data transmission speeds of up to 800Kbps.
The color of the light highly consistent, cost-effective.

Outer diameter: 48mm
Inner diameter: 35mm
Net Weight: 6g

Package includes:
1 x RGB LED Ring 12 Bit WS2812 5050 RGB LED with Integrated Driver
