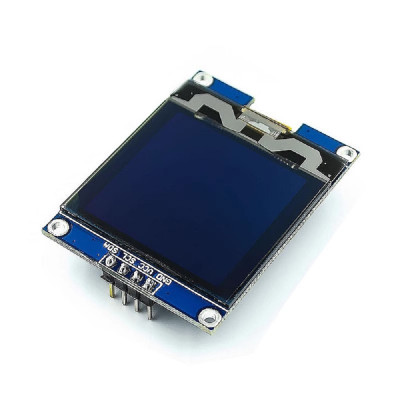

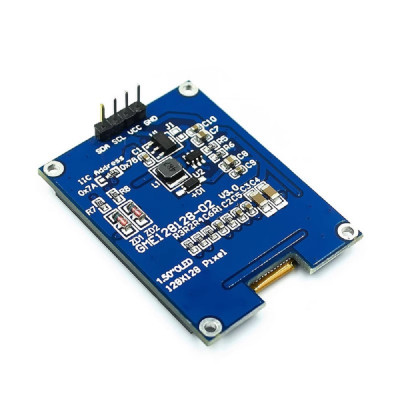

1.5 inch oled display module 128128 screen OLED screen IIC

1.5 inch oled display module 128128 screen OLED screen IIC

Product features

• Driver chip SSD1327Z.
• Supports interface Iics.
• Resolution 128*128.
• OLED mode positive/white light.

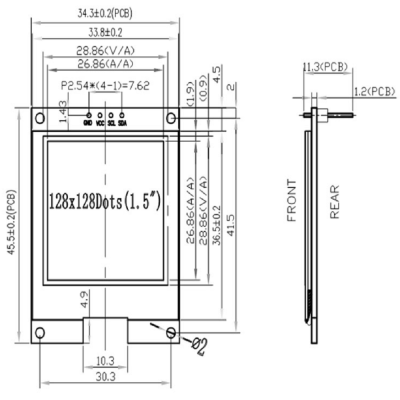

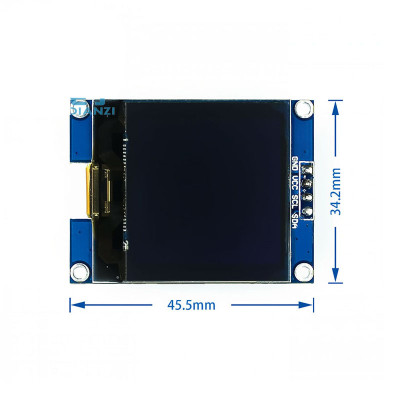

• Overall dimensions 34.3 * 45.5 * 11.3mm.
• Display size 28.86 * 28.86mm.
• Display color White text on black background.
• Operating temperature -40C^ 70C.
• Storage temperature -40C^ "85C.
• Operating voltage 3.3~5V.
• LCD drive voltage 14.5^ 15.5V.
• Support Interface: IIC
• Resolution: 128*128
• LED mode: positive display/white light
• Dimension: 34.3*45.5*11.3m and Display size: 28.86*28.86m
• package Inculdes:xcluma1.5 inch oled display module 128128 screen OLED screen IIC
