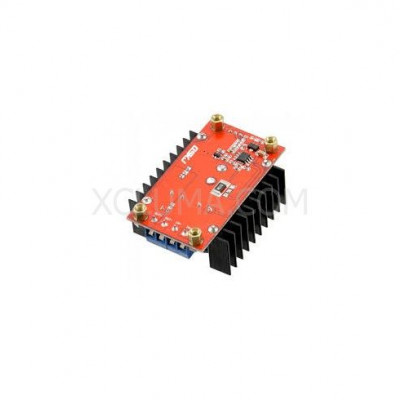

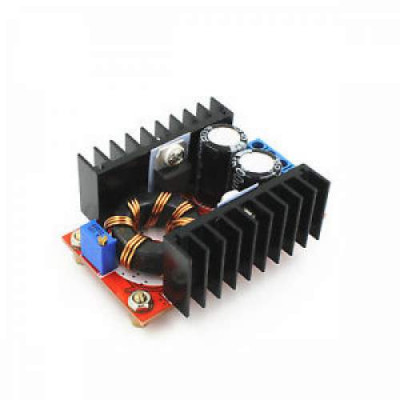

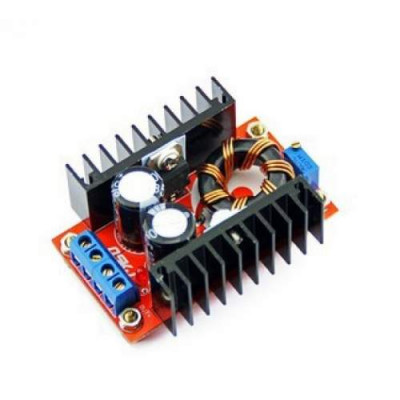

150W DC - DC Boost Converter 12 - 35V / 6A Step - Up Adjustable Power Supply Arduino ARM Raspberry AND Othe

150W DC - DC Boost Converter 12 - 35V / 6A Step - Up Adjustable Power Supply Arduino ARM Raspberry AND Othe
150W DC - DC Boost Converter 12 - 35V / 6A Step - Up Adjustable Power Supply Arduino ARM Raspberry AND Othe
150W DC - DC Boost Converter 12 - 35V / 6A Step - Up Adjustable Power Supply Arduino ARM Raspberry AND Othe
150W DC - DC Boost Converter 12 - 35V / 6A Step - Up Adjustable Power Supply Arduino ARM Raspberry AND Othe
150W DC - DC Boost Converter 12 - 35V / 6A Step - Up Adjustable Power Supply Arduino ARM Raspberry AND Othe
150W DC - DC Boost Converter 12 - 35V / 6A Step - Up Adjustable Power Supply Arduino ARM Raspberry AND Othe
150W DC - DC Boost Converter 12 - 35V / 6A Step - Up Adjustable Power Supply Arduino ARM Raspberry AND Othe
  • Stock: In Stock
  • Model: BE-000044
  • Weight: 65.00g
Rs147.00
(GST +18%Extra)

DESCRIPTION:

  • Module Properties: non-isolated step-up module (BOOST)
  • Input voltage :10-32V
  • Output voltage: 12-35V (adjustable)
  • Output Current: 6A (MAX)
  • Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A)
  • Output power: enhance heat dissipation 150W (MAX)
  • Easy to drive 65W 90W dual-core notebook.
  • Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45 c
  • Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
  • Output Ripple: 2% (MAX) 20M-bandwidth
  • Operating Temperature: Industrial (-40 c to +85 c) (ambient temperature exceeds 40 c, lower power use, or to enhance heat dissipation)
  • Full load temperature rise: 45 c
  • No-load current: 25mA typical
  • Voltage regulation: 0.5%
  • Dynamic response speed: 5% 200uS
  • Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
  • Input Reverse Polarity Protection: None (Please Series diode at the input port.)


SOME APPLICATIONS:
1. DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable freely), However, the output voltage can not be less than the input voltage.
2. Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.
