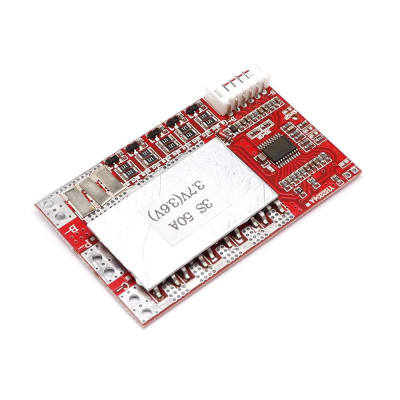

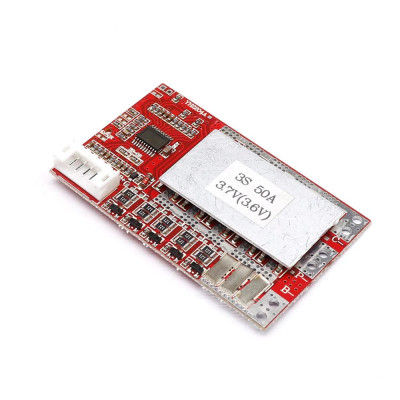

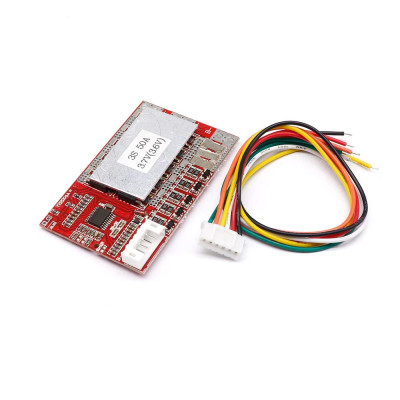

3S 50A BMS Board/ 55A 3.7V Lithium battery protection board/3.2V iron phosphate/LiFePO4 battery BMS board with Balance

3S 50A BMS Board/ 55A 3.7V Lithium battery protection board/3.2V iron phosphate/LiFePO4 battery BMS board with Balance
  • Stock: In Stock
  • Brand: xcluma
  • Model: BE-002556
  • Weight: 17.00g
  • SKU: BE-002556
  • MPN: BE-002556
Rs626.00
(GST +18%Extra)

Description

·         Charging Current: 50A

·         Balance Current: 55mA

·         Discharge Overcurrent Protection: 70A

·         Charge Low Temperature Protection: -7

·         Short circuit Protection

• The lithium battery protection board uses a highly integrated intelligent lithium battery protection board integrated chip, the performance is better than the protective board composed of discrete chips.
• Can complete 4 string polymer lithium battery, ternary lithium battery, lithium iron phosphate, lithium cobalt oxide, lithium manganese oxide battery charge and discharge protection, over current, short circuit, over temperature protection and equalization function.
• It adopts 4 milliohm ultra-low internal resistance MOS tube, which has low internal resistance and high efficiency.
• It is suitable for battery pack applications in different fields such as inverters, DC motors, power tools, and solar street lights.
• It is common to the same mouth and mouth, and has strong applicability. The protection board has a heat sink and a supply line.

Features
• Single cell Overcharge Protection Voltage: Polymer 4.25V ± 0.025V / Phosphoric 3.75V ± 0.025V
• Single cell Overcharge Relieved Voltage: Polymer 4.15V ± 0.05V / Phosphoric 3.55V ± 0.05V
• Overcharge Protection Delay: 1S ± 200mS
• Single cell Over-discharge Protection Voltage: Polymer 2.7V ± 0.05V / Phosphoric 2.0V ± 0.05V
• Single cell Over-discharge Relieved Voltage: Polymer 3.0V ± 0.1V / Phosphoric 2.7V ± 0.1V
• Over-discharge Protection Delay: 1S ± 200mS
Discharge Overcurrent Protection: 70A
• Discharge Overcurrent Protection Delay: 100mS ± 50mS
• Short circuit Protection: Yes
• Short circuit Protection Delay: 250uS ± 50uS
• Short circuit Protection Recovery Mode: Disconnect the load recovery output voltage

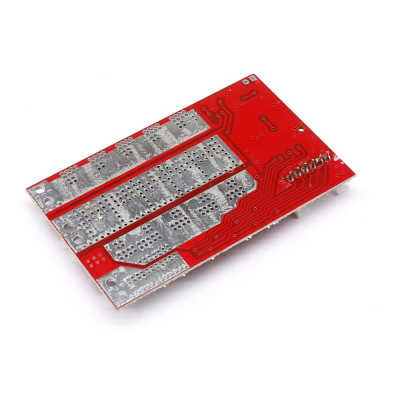

• Discharge Current: 50A (When more than 20A , please add tin on the back of the PCB
